Menşe yeri: | China |
Marka adı: | ABB |
Model numarası: | B6-20-11-P-01 |
Min sipariş miktarı: | 2 sets |
---|---|
Ambalaj bilgileri: | Wooden box packing |
Teslim süresi: | 15 days after signing the contract |
Ödeme koşulları: | T/T |
Yetenek temini: | 1000sets |
MODEL: | B6-20-11-P-01 | Product ID: | GJL1211609R0111 |
---|---|---|---|
EAN: | 4013614081903 | HS CODE: | 85365080 |
Rated working voltage: | Auxiliary Circuit 12 ... 240 V DC Auxiliary Circuit 12 ... 500 V AC/DC Main Circuit 12 ... 690 V AC/DC Main Circuit 690 V AC | Rated frequency: | Control Circuit 400 Hz Control Circuit 50 Hz Control Circuit 60 Hz Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC |
Uimp: | Auxiliary Circuit 6 kV Main Circuit 6 kV | Ui: | 690 V acc. to UL/CSA 600 V |
Main NC number: | 0 | Main NO number: | 2 |
Rated working current AC-1 (Ie): | (220 / 240 V) 40 °C 12 A (220 / 240 V) 55 °C 12 A (380 / 440 V) 40 °C 12 A (380 / 440 V) 55 °C 12 A (690 V) 40 °C 6 A (690 V) 55 °C 6 A | AC-3 (Pe): | (220 / 230 / 240 V) 2.2 kW (400 V) 4 kW (400 V) Three Phase 4 kW (440 V) 4 kW (500 V) 4 kW (690 V) 3 kW |
(Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A | ||
Vurgulamak: | dc motor contactor,electrical contactor |

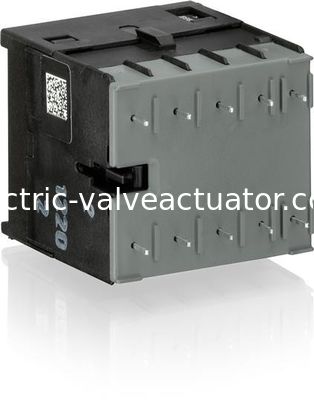

The B6-20-11-P mini contactor is a compact 2 pole contactor with 2 auxiliary contact and soldering pins. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail mounting.
