Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button

Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button
Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button

Büyük resim :  Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button En iyi fiyat

Ürün ayrıntıları:

Place of Origin: China
Marka adı: OEM
Model Number: LA39-B

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Fiyat: contact
Packaging Details: Carton box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 300PCS / month
Detaylı ürün tanımı
Vurgulamak:

digital rpm indicator

,

speed measuring instrument

Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button









Plastic actuation head is beautiful and economic, with hole diameter of φ22.5mm;
The customers can select the contact combination types as per their requirements with maximum six pairs of contacts. The leaf spring type actuation mechanism is adopted with the contact self-cleaning function and reliable contact;

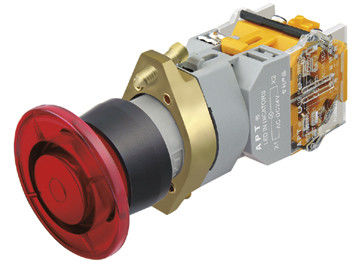

Complete specifications, including reset buttons, self-locking buttons, illuminated buttons, mushroom buttons, knobs, key buttons and emergency stop buttons etc.
Three types of installation methods: to be installed with the inclined screws to prevent looseness, straight screws to save the installation space, and simple nuts;
The luminous body of the illuminated button applies pure super bright LED with the lightness above 100cd/m2;
The mechanical service life of the button is above 3,000,000 times; the continuous illumination life of the illuminated buttons is above 100,000 hours;
The symbol leaf or label frame can be provided according to the requirements of the operation instructions from the customers;



Technical Parameters

Rated Insulation Voltage: AC660V 50Hz
Power Frequency Withstand Voltage: AC1890V
Conventional Thermal Current: 10A
Mechanical Service Life: 3,000,000 times for normal buttons, mushroom buttons and illuminated buttons
300,000 times for knobs, compact buttons, two-position buttons and self-locking buttons
50,000 times for key buttons and emergency stop buttons
Electrical Service Life: 600,000 times
Ambient Temperature: -25℃~55℃
Storage Temperature: -30℃~70℃
Action Frequency: 1,200 times/hour
Production Certification: CCC, CE, RoHS
Compliance Standards: IEC 60947 / GB 14048.5
Protection Class: IP54, custom-made IP65, to be IP67 after F1 protective cover is installed;Key Button IP54
