Menşe yeri: | China |
Marka adı: | Jianghe |
Model numarası: | DCF23S |
Min sipariş miktarı: | 1 |
---|---|
Fiyat: | contact |
Ambalaj bilgileri: | Carton box |
Teslim süresi: | 10 days |
Ödeme koşulları: | T/T |
Yetenek temini: | 500PCS / month |
Vurgulamak: | speed measuring instrument,digital panel indicator |
---|

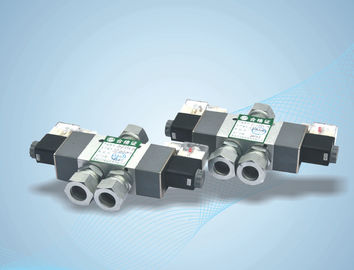

Double electric control air valve solenoid vavle DCF23S Double action pilot solenoid valve DC220V
DN : 10mm 15mm
Working pressure : 0.15 ~ 0.9MPA
Working voltage : DC220V DC110V DC24V AC220V

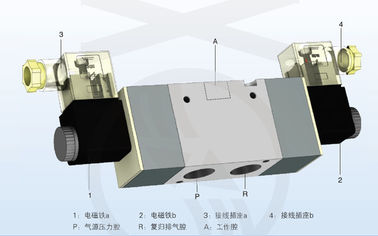

DCF23S double solenoid air valve is two position three way solenoid valve, through an electromagnet (off), open (closed) pilot hole end of the valve, the spool, controlled fluid reversing, for hydropower station and air brake band seal, but also can be used for thermal power, metallurgy, machinery, chemical industry, working in the medium for the compressed air in the pipeline, in order to realize the automatic remote control. This product features: small size, light weight, reliable operation, the electromagnetic coil for a short time, small driving power, it is not easy to damage. With manual control mechanism with self-locking function. It is through the electromagnet General Electric (off), open (closed) pilot hole end of the valve, the spool, controlled fluid reversing, for hydropower station and air brake band seal, but also can be used for thermal power, machinery, metallurgy, chemical industry, working in the medium for the compressed air in the pipeline, with the To achieve remote automatic control. This product features: small size, light weight, reliable work, electromagnetic coil for a short time to work, driving power is small, not easy to damage. With manual control mechanism, with self-locking function.
