15W Low Voltage Protection Devices AC to DC Switching Power Supply

Name: 15W Low Voltage Protection Devices AC to DC Switching Power Supply
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: RS-15-5
Price: 210.00 USD
Availability: InStock

Marka Adı:	MEAN WELL
Model Numarası:	RS-15-5
Adedi:	2 sets
Ödeme Şartları:	T/T
Tedarik Yeteneği:	1000sets

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

China

MODEL:

RS-15-5

DC VOLTAGE:

CURRENT RANGE:

0 ~ 3A

VOLTAGE ADJ. RANGE:

4.75 ~ 5.5V

Packaging Details:

Wooden box packing

Supply Ability:

1000sets

Vurgulamak:

electrical protective devices

dc power contactor

Ürün Tanımı

RS-15-5 switching power supply , 15W Single Output Switching Power Supply for low voltage protection device AC to DC .

Features :

Universal AC input / Full / range
Protections : Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convertion
Led indicator for power on
100% full load burn-in test
No load power consumption < 0.5w
All using 105℃ long life electro lytic capacitors
Withstand 300VAC Surge input for 5 second
High operating temperature up to 70℃
Wighstand 5G vibration test
High efficiency , long life and high reliability
3 year warranty

MODEL		RS-15-5
OUTPUT	DC VOLTAGE	5V
	RATED CURRENT	3A
	CURRENT RANGE	0~3A
	RATED POWER	15W
	RIPPLE & NOISE (max.) Note.2	80mVp-p
	VOLTAGE ADJ. RANGE	4.75~5.5V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION Note.4	±0.5%
	LOAD REGULATION Note.5	±1.5%
	SETUP, RISE TIME	1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	70ms/230VAC 15ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	77%
	AC CURRENT (Typ.)	0.35A/115VAC 0.25A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 65A / 230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVERLOAD	Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER TEMPERATURE	U1 Tj 1400C typically (U1) detect on main controlIC Protection type : Shut down o/p voltage, recovers automatically goes down
ENVIRONMENT	WORKING TEMP.	-25 ~ +70 °C (Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85°C , 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C(0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
	EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
OTHERS	MTBF	1608.8Khrs min. MIL-HDBK-217F (25°C)
	DIMENSION	*62.55128mm (LWH)*
	PACKING	0.13Kg; 108pcs/15Kg/0.71CUFT

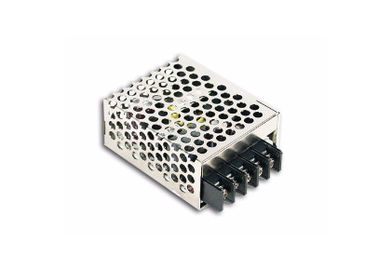

15W Low Voltage Protection Devices AC to DC Switching Power Supply 0
