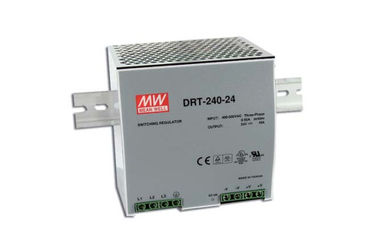

Name: Meanwell DRT-240-48 240W Three Phase Industrial DIN RAIL Power Supply high reliability
Brand: MEAN WELL
SKU: DRT-240-48
Rating: 4.5 (183 reviews)

Ana sayfa Ürünler Alçak Gerilim Koruma Cihazları

Meanwell DRT-240-48 240W Three Phase Industrial DIN RAIL Power Supply high reliability

Ürün ayrıntıları:

Menşe yeri:	China
Marka adı:	MEAN WELL
Model numarası:	DRT-240-48

Ödeme & teslimat koşulları:

Min sipariş miktarı:	2 sets
Ambalaj bilgileri:	Wooden box packing
Teslim süresi:	15 days after signing the contract
Ödeme koşulları:	T/T
Yetenek temini:	1000sets

İletişim

Detaylı ürün tanımı

MODEL:

DRT-240-24

DC VOLTAGE:

48V

CURRENT RANGE:

0 ~ 5A

VOLTAGE ADJ. RANGE:

48 ~ 55V

Vurgulamak:

electrical protective devices

dc power contactor

Original SE-100-24 24V/4.5A Single Output AC to DC High-power Switching Power Supply

Features :

Three-phase AC340-550V wide range input
High efficiency 89% and low dissipation
Protection : short circuit / overload / over voltage / over temperature
Cooling by free air convection
Built-in constand current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508 ( industrial control equipment ) approved
EN61000-6-2 ( EN50082-2) indusctrial immunity level
100% full load burn-in test
Fixed switching frequency at 70KHZ
3 Years warranty

MODEL		DRT-240-24
OUTPUT	DC VOLTAGE	24V
	RATED CURRENT	10A
	RATED POWER	240W
	RIPPLE & NOISE (max.) Note.2	80mVp-p
	VOLTAGE ADJ. RANGE	24~28V
	VOLTAGE TOLERANCE Note.3v	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	SETUP.RISE TIME	1200ms, 40ms, 20ms/400VAC 800ms, 40ms, 40ms/500VAC at full load
INPUT	VOLTAGE RANGE Note.5	Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC
	FREQUENCYRANGE	47~63HZ
	EFFICIENCY (Typ.)	89%
	AC CURRENT (Typ.)	0.95A/400VAC 0.75A/500VAC
	INRUSH CURRENT (max.)	COLD START 50A
PROTECTION	OVERLOAD	105 ~ 150% rated output power
	OVERLOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	30 ~ 36V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
