Yüksek Performanslı Ateşleme Sistemi
Created with Pixso.

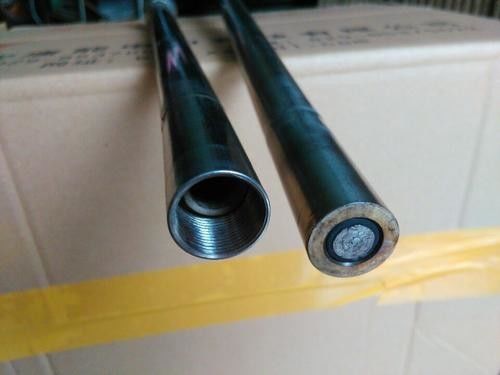

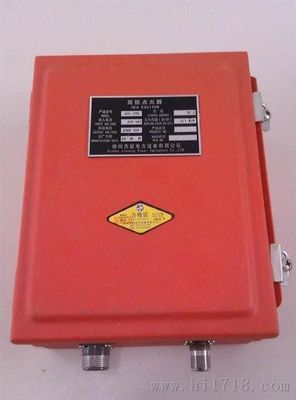

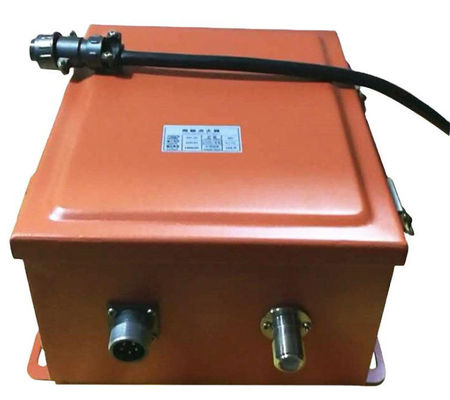

XDH Serisi XDH-20C Yüksek Enerjili Çakma Cihazı AC 220V XDZ-1 Çakma Çubuğu Çakma Çubuğu Yüksek Voltajlı Kablo

XDH Serisi XDH-20C Yüksek Enerjili Çakma Cihazı AC 220V XDZ-1 Çakma Çubuğu Çakma Çubuğu Yüksek Voltajlı Kablo

Marka Adı: OEM
Model Numarası: XDH-20
Adedi: 1 Takım
Ödeme Şartları: / T
Tedarik Yeteneği: 200
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Voltaj:
220V ±% 10 50 / 60HZ
Enerji:
20J
Kıvılcım frekansı:
12-14 kez / S
Çerçeve boyutu:
300 * 200 * 120
ateşleme çubuğu:
M18 * 1.0 M18 * 1.5 M27 * 1.5
Sıcaklık:
1300 ℃
Çubuk çapı:
16 Φ18
Ambalaj bilgileri:
Ahşap kutu ambalaj
Yetenek temini:
200
Vurgulamak:

XDH-20C Yüksek Enerjili Çakma Cihazı

,

AC 220V Yüksek Enerjili Çakma Cihazı

,

Yüksek enerjili çakma modülü

Ürün Tanımı

Portable High Performance Ignition System Hea Box for XDH High-Energy Ignition Device Assembly DC 12V, AC 220V



1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head

2,Technical advantages and honor- Low ignition voltage;- Good temperature resistance;- Safety and reliability, strong ability to resist pollution


Applications:


    As XDH high-energy ignition device assembly.



Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage;
- Good temperature resistance;
- Safety and reliability,  strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.

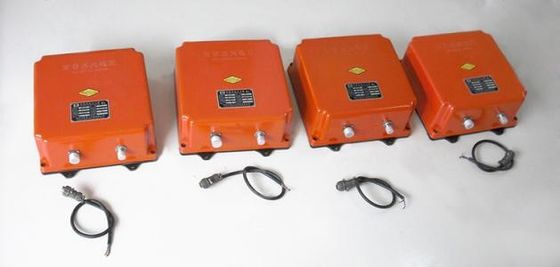

Product model and series

1. Product series

Sr.

Model

Description

1

XDH-1G

High pressure gap ignitor

2

XDH-2Z

DC charging portable ignition

3

XDH-6B

explosion-proof high-energy ignition

4

XDH-6L

Portable high-energy ignition

5

XDH-12T

Portable high-energy ignition

6

XDH-20B

explosion-proof high-energy ignition

7

XDH-20C

high-energy ignition

8

XDH-20L

high-energy ignition

9

XDH-50

high-energy ignition

【Note】As the series of products still cannot meet the requirements of users,  according to the demand of design.



1. basic configuration:(leave)

2. Performance parameters



Various types of igniter performance:

Parameter name

Unit

Data

NDH-2Z
ignition

NDH-6 series ignition

XDH- 20 series ignition

XDH-50
ignition

Energy storage

J

2

10

20

50

Working voltage

V

DC12

AC220

Output voltage

VDC



2500±5%

Spark frequency

(Times / sec)

1~3

2~10 Adjustable

7~17

2~10  Adjustable

Duty cycle (on / off)

S

30/60

120/60

300/60

120/60



3. Outline and mounting dimensions   pls contact to confirm
