Vurgulamak: | digital rpm indicator,speed measuring instrument |
---|

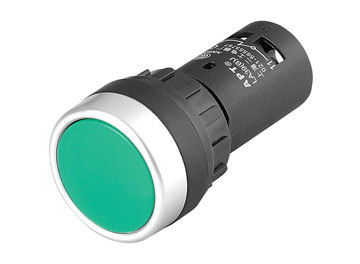

AC300V 50Hz Green Digital Speed Indicator , φ22.5mm Compact Button
Compact Button, Installation Hole Diameter φ22.5mm;
Contact combination type, one ON and One OFF, Two NO, Two NC;
The symbol leaf or label frame can be provided according to the requirements of the operation instructions from the customers;
Rated Insulation Voltage: AC300V 50Hz
Power Frequency Withstand Voltage: AC1890V
Conventional Thermal Current: 5A
Mechanical Service Life: 1,000,000 times for normal buttons
Electrical Service Life: 100,000 times
Ambient Temperature: -25℃~55℃
Storage Temperature: -30℃~70℃
Action Frequency: 1,200 times/hour
Production Certification: CCC, CE, RoHS
Compliance Standards: IEC 60947 / GB 14048.5
Protection Class: IP54, to be IP67 after F1 protective cover is installed
