Dijital Hız Göstergesi
Created with Pixso.

Single-Hole Digital Speed Indicator , Cam Subminiature Change-Over Switches

Single-Hole Digital Speed Indicator , Cam Subminiature Change-Over Switches

Marka Adı: OEM
Model Numarası: W39-10
Adedi: 1
fiyat: contact
Ödeme Şartları: T/T
Tedarik Yeteneği: 300PCS / month
Ayrıntılı Bilgiler
Place of Origin:
China
Packaging Details:
Carton box
Supply Ability:
300PCS / month
Vurgulamak:

digital rpm indicator

,

speed measuring instrument

Ürün Tanımı

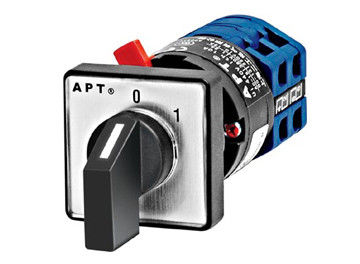

Single-Hole Digital Speed Indicator , Cam Subminiature Change-Over Switches









LW39-10 subminiature change-over switches are widely applicable to the places with quite small installation space. The single-hole installation method same with that of LA39 series of buttons is used with the installation hole diameter of 16mm or 22mm. The international popular built-in wiring method is used, which is safe and reliable. The actuation head is designed with the sealing element and has a protection class of IP64. The gold-plated silver alloy contactors are used as contact to ensure the contact reliability under the low voltage and current.

Technical Parameters

Rated Insulation Voltage Ui:440V
Conventional Thermal Current Ith: 10A
Power Frequency Withstand Voltage: 2500V, 1min
AC Service Life: 200,000 times
DC Service Life: 100,000 times
Mechanical Service Life: 300,000 times
