Menşe yeri: | China |
Marka adı: | OEM |
Model numarası: | JM-B-6000 |
Min sipariş miktarı: | 1 set |
---|---|
Ambalaj bilgileri: | Wooden box packing |
Teslim süresi: | 15 days after signing the contract |
Ödeme koşulları: | T/T |
Yetenek temini: | 1000sets |
Vurgulamak: | electronic measuring devices,turbine speed sensor |
---|

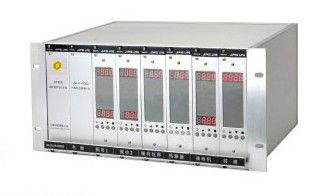

Rotating Monitoring JM-B series Protection Device , On-Line Monitoring
Intelligent Rotational Speed Sensor High Reliability For On-Line Monitoring
Functions
1. Highly Intelligent, all parametera can be set on a control panel.
2.Suitable for on-line monitoring for a lon time, easy to install and debug, needing no site maintenance.
3.With modular structure, each module has a microprocessor, the system can be estabolished by any combination, the system reliability is inproved.
4.each module has a indepent 2 level alarm digital output.
5.4~20mA current analog output.
6.Real time TDM signals output.
7.Free configurations of measuring range, alarm and danger value.
8.Password protection to parameter configuration.
9.Automatice record and inquirie of maximum value.
technical parameters
1.Display mode:Digital LED display
2.Measuring range: The same as JM-B-600B on-line rotating machinely protection device.
3.Measuring accuracy: ±0.5 class, linear error≤1%FS.
4.Model channels:Dual or singel signal I/O
5.Input signals: The same as JM-B-6000B on-line rotating machinery protection device,
6.Output signals: Current output 4~20mA(load≤1KΩ)
2 level switch output: (DC27V/2A or AC250V/5A)
TWD synchronous signal ooutput (altmative)
7.Working environment: Environmental temperature: -10~65℃ (Relative hunidity: ≤85%)
8.Power voltage: AC200V/50Hz±10%
9.Installation: Disk
10.External dimension:(40×chassis instrument position +58mm)(length)×176.5mm(hight)×260mm(depth)
11.Hole size:(40×chassis instrument position +27mm(length)×176.5mm(hight)
code |
channeis number |
Chassis intrument position |
Externai dimension(mm) L×H×S |
Hole size(mm) L×H |
01 | 2 | 4 | 218×176.5×260 | 187×176.5 |
02 | 3 | 5 | 258×176.5×260 | 277×176.5 |
03 | 4 | 6 | 298×176.5×260 | 267×176.5 |
04 | 5 | 7 | 338×176.5×260 | 307×176.5 |
05 | 6 | 8 | 378×176.5×260 | 347×176.5 |
06 | 7 | 9 | 418×176.5×260 | 387×176.5 |
07 | 8 | 10 | 458×176.5×260 | 427×176.5 |
08 | 9 | 11 | 498×176.5×260 | 467×176.5 |
09 | 10 | 12 | 538×176.5×260 | 507×176.5 |
10 | 11 | 13 | 578×176.5×260 | 547×176.5 |
11 | 12 | 14 | 618×176.5×260 | 587×176.5 |
