Detaylı ürün tanımı
Vurgulamak:

electronic measuring devices

,

turbine speed sensor

Highly Intelligent Vibration Monitoring , electronic measuring devices

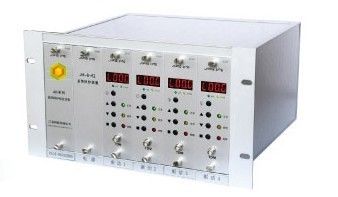

JM-B-6Z Monitoring and Protection Device


 Functions

1.Highly Intelligent, all parameters can be set on a control panel.

2. Suitable for on-line monitoring for a long time, easy to install and debug, needing no site maintenance,

3.With modular, each modulr has a microprocessor ,the system  can be estabilished by any combination, the system reliability is improvede.

4.Each module has a indepent 2 level alarm digital output.

5.4~20mA analog current output.

6.Real time TDM signals output.

7.Free configurations of measuring range, alarm and gamger value.

8.Automatice record and inquirle of maximum value.

9.Password protection to parameter configuration.

10.Free switching between amplitude abd intensity.



Technical Parameters

1.Display mode: Digital LED display.

2.Measuring range: The same as JM-B-6000B om-line rotating machinery protection device.

3.Measuring accracy:±0.5 class, linear error≤1%FS.

4.Module channels: Single siganal I/O(for single module)

5.Input signal: The same as JM-B-6000B on-line rotating machinery protection device

6.Output signal: Current output: 4~20mA(load≤1KQ)

                          2 level switch signal output: DC 27V/2A or AC250V/5A

                          TDM synchronous signal output

                          BUF signal output

7. Environmental temperature: -10~65℃(Relative humidity: ≤85%)

8. Power voltage: AC200V/50Hz±10%

9.Installation: Disk

10. Extermal dimension: (40×chassis intrument position +58mm)(length)×161.5mm(height)×260mm(depth)

11.Hole size:(40×chassis instrument position +27mm)(length)×140mm(height)

Code Chanels number Chassis instrument position

Extamal dimension(mm)

L×H×S

Hole size(mm)

L*×H*

01 2 4 218×161.5×260 187×140
02 3 5 258×161.5×260 227×140
03 4 6 298×161.5×260 267×140
04 5 7 338×161.5×260 307×140
05 6 8 378×161.5×260 347×140
06 7 9 418×161.5×260 387×140
07 8 10 458×161.5×260 427×140
08 9 11 498×161.5×260 467×140
09 10 12 538×161.5×260 507×140
10 11 13 578×161.5×260 547×140
11 12 14 618×161.5×260 587×140
