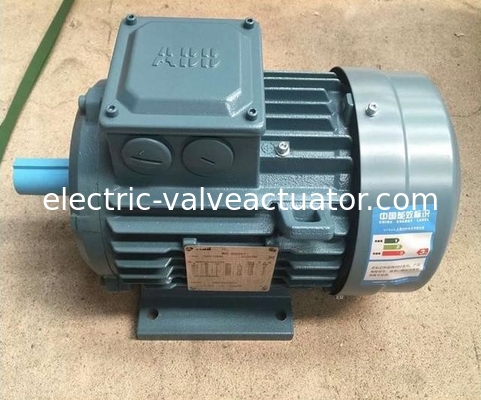

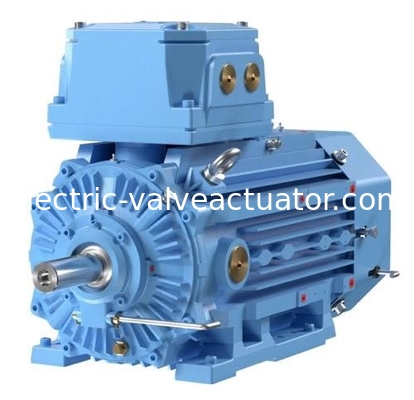

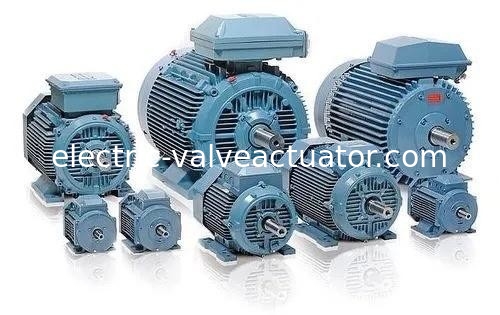

ABB motoru M2QA IP55 Su geçirmez 3 fazlı düşük voltajlı elektrikli motorlar

Ürün Tanımı:

ABB motorlarıEn son teknolojileri dahil ederek güvenilirliği, üst düzey işleyişi ve dayanıklılığı garanti ederken, her güçlendirilmiş uygulama için mükemmel bir motor sunar.Geliştirilmiş performans için belirli uygulamalara ek olarak, her motor ağır görev kullanımı için en zorlu ortama dayanabilir.

Özellikleri:

• M2QA 180L8A-XXX * 3GQA 184501-XXX * 415V50Hz 11kW 730r/min
  M2QA 200L8A-XXX * 3GQA 204501-XXX * 415V50Hz 15kW 730r/min
  M2QA 225S8A-XXX * 3GQA 224101-XXX * 415V50Hz 18.5kW 740r/min
  M2QA 225M8A-XXX * 3GQA 224301-XXX * 415V50Hz 22kW 740r/min
  M2QA 250M8A-XXX * 3GQA 254301-XXX * 415V50Hz 30kW
  M2QA 280S8A-XXX * 3GQA 284101-XXX * 415V50Hz
  M2QA 280M8A-XXX * 3GQA 284301-XXX * 415V50Hz 45kW
  M2QA 315S8A-XXX * 3GQA 314101-XXX * 415V50Hz 55kW 740r/min
  M2QA 315M8A-XXX * 3GQA 314301-XXX * 415V50Hz 75kW 740r/min
  M2QA 315L8A-XXX * 3GQA 314501-XXX * 415V50Hz 90kW 740r/min
  M2QA 315L8B-XXX * 3GQA 314502-XXX * 415V50Hz 110kW 740r/min
  M2QA 355M8A-XXX * 3GQA 354301-XXX * 415V50Hz 132kW 740r/min
  M2QA 355M8B-XXX * 3GQA 354302-XXX * 415V50Hz 160kW 740r/min
  M2QA 355L8A-XXX * 3GQA 354501-XXX * 415V50Hz 200kW 740r/min
  M2QA 71M2A-XXX * 3GQA 071301-XXX * 460V60Hz 0.43kW 3350r/min
  M2QA 71M2B-XXX * 3GQA 071302-XXX * 460V60Hz 0.63kW 3350r/min
  M2QA 80M2A-XXX * 3GQA 081301-XXX * 460V60Hz 0.86kW 3420r/min
  M2QA 80M2B-XXX * 3GQA 081302-XXX * 460V60Hz 1.27kW 3430r/min
  M2QA 90S2A-XXX * 3GQA 091101-XXX * 460V60Hz 1.73kW 3420r/min
  M2QA 90L2A-XXX * 3GQA 091501-XXX * 460V60Hz 2.53kW 3440r/min
  M2QA 100L2A-XXX * 3GQA 101501-XXX * 460V60Hz 3.45kW 3450r/min
  M2QA 112M2A-XXX * 3GQA 111301-XXX * 460V60Hz 4.6kW 3475r/min
  M2QA 132S2A-XXX * 3GQA 131101-XXX * 460V60Hz 6.33kW 3500r/min
  M2QA 132S2B-XXX * 3GQA 131102-XXX * 460V60Hz 8.6kW 3510r/min
  M2QA 160M2A-XXX * 3GQA 161301-XXX * 460V60Hz 12.7kW 3515r/min
  M2QA 160M2B-XXX * 3GQA 161302-XXX * 460V60Hz 17.3kW 3515r/min
  M2QA 160L2A-XXX * 3GQA 161501-XXX * 460V60Hz 21.3kW 3520r/min
  M2QA 180M2A-XXX * 3GQA 181301-XXX * 460V60Hz 25.3kW 3540r/min
  M2QA 200L2A-XXX * 3GQA 201501-XXX * 460V60Hz 34.5kW 3550r/min
  M2QA 200L2B-XXX * 3GQA 201502-XXX * 460V60Hz 42.6kW 3550r/min
  M2QA 71M2A-XXX * 3GQA 071301-XXX * 460V60Hz 51.8kW 3570r/min
  M2QA 250M2A-XXX * 3GQA 251301-XXX * 460V60Hz 63kW 3560r/min
  M2QA 280S2A-XXX * 3GQA 281101-XXX * 460V60Hz 86kW 3570r/min
  M2QA 280M2A-XXX * 3GQA 281301-XXX * 460V60Hz 104kW 3570r/min
  M2QA 315S2A-XXX * 3GQA 311101-XXX * 460V60Hz 127kW 3575r/min
  M2QA 315M2A-XXX * 3GQA 311301-XXX * 460V60Hz 152kW 3575r/min
  M2QA 315L2A-XXX * 3GQA 311501-XXX * 460V60Hz 184kW 3575r/min
  M2QA 315L2B-XXX * 3GQA 311502-XXX * 460V60Hz 230kW 3575r/min
  M2QA 355M2A-XXX * 3GQA 351301-XXX * 460V60Hz 287.5kW 3580r/min
  M2QA 355L2A-XXX * 3GQA 351501-XXX * 460V60Hz 362.5kW 3580r/min
  M2QA 71M4A-XXX * 3GQA 072301-XXX * 460V60Hz 0.29kW 1665r/min
  M2QA 71M4B-XXX * 3GQA 072302-XXX * 460V60Hz 0.43kW 1670r/min
  M2QA 80M4A-XXX * 3GQA 082301-XXX * 460V60Hz 0.63kW 1695r/min
  M2QA 80M4B-XXX * 3GQA 082302-XXX * 460V60Hz 0.86kW 1690r/min
  M2QA 90S4A-XXX * 3GQA 092101-XXX * 460V60Hz 1.27kW 1695r/min
  M2QA 90L4A-XXX * 3GQA 092501-XXX * 460V60Hz 1.73kW 1700r/min
  M2QA 100L4A-XXX * 3GQA 102501-XXX * 460V60Hz 2.53kW 1730r/min
  M2QA 100L4B-XXX * 3GQA 102502-XXX * 460V60Hz 3.45kW 1725r/min
  M2QA 112M4A-XXX * 3GQA 112301-XXX * 460V60Hz 4.6kW 1735r/min
  M2QA 132S4A-XXX * 3GQA 132101-XXX * 460V60Hz 6.33kW 1735r/min
  M2QA 132M4A-XXX * 3GQA 132301-XXX * 460V60Hz 8.6kW 1735r/min
  M2QA 160M4A-XXX * 3GQA 162301-XXX * 460V60Hz 12.7kW 1755r/min
  M2QA 160L4A-XXX * 3GQA 162501-XXX * 460V60Hz 17.3kW 1750r/min
  M2QA 180M4A-XXX * 3GQA 182301-XXX * 460V60Hz 21.3kW 1770r/min
  M2QA 180L4A-XXX * 3GQA 182501-XXX * 460V60Hz 25.3kW 1770r/min
  M2QA 200L4A-XXX * 3GQA 202501-XXX * 460V60Hz 34.5kW 1775r/min
  M2QA 225S4A-XXX * 3GQA 222101-XXX * 460V60Hz 42.6kW 1780r/min
  M2QA 225M4A-XXX * 3GQA 222301-XXX * 460V60Hz 51.8kW 1780r/min
  M2QA 250M4A-XXX * 3GQA 252301-XXX * 460V60Hz 63kW 1775r/min
  M2QA 280S4A-XXX * 3GQA 282101-XXX * 460V60Hz
  M2QA 280M4A-XXX * 3GQA 282301-XXX * 460V60Hz 104kW 1780r/min
  M2QA 315S4A-XXX * 3GQA 312101-XXX * 460V60Hz 127kW
  M2QA 315M4A-XXX * 3GQA 312301-XXX * 460V60Hz 152kW 1780r/min
  M2QA 315L4A-XXX * 3GQA 312501-XXX * 460V60Hz 184kW
  M2QA 315L4B-XXX * 3GQA 312502-XXX * 460V60Hz
  M2QA 355M4A-XXX * 3GQA 352301-XXX * 460V60Hz 287.5kW 1785r/min
  M2QA 355L4A-XXX * 3GQA 352501-XXX * 460V60Hz 362.5kW 1790r/min
  M2QA 71M6A-XXX * 3GQA 073301-XXX * 460V60Hz 0.21kW 1060r/min
  M2QA 71M6B-XXX * 3GQA 073302-XXX * 460V60Hz 0.29kW 1060r/min
  M2QA 80M6A-XXX * 3GQA 083301-XXX * 460V60Hz 0.43kW 1105r/min
  M2QA 80M6B-XXX * 3GQA 083302-XXX * 460V60Hz 0.63kW 1115r/min
  M2QA 90S6A-XXX * 3GQA 093101-XXX * 460V60Hz 0.86kW 1115r/min
  M2QA 90L6A-XXX * 3GQA 093501-XXX * 460V60Hz 1.27kW 1110r/min
  M2QA 100L6A-XXX * 3GQA 103501-XXX * 460V60Hz 1.73kW 1135r/min
  M2QA 112M6A-XXX * 3GQA 113301-XXX * 460V60Hz 2.53kW 1140r/min
  M2QA 132S6A-XXX * 3GQA 133101-XXX * 460V60Hz 3.45kW 1145r/min
  M2QA 132M6A-XXX * 3GQA 133301-XXX * 460V60Hz 4.6kW 1150r/min
  M2QA 132M6B-XXX * 3GQA 133302-XXX * 460V60Hz 6.33kW 1150r/min
  M2QA 160M6A-XXX * 3GQA 163301-XXX * 460V60Hz 8.6kW 1165r/min
  M2QA 160L6A-XXX * 3GQA 163501-XXX * 460V60Hz 12.7kW 1165r/min
  M2QA 180L6A-XXX * 3GQA 183501-XXX * 460V60Hz 17.3kW 1175r/min
  M2QA 200L6A-XXX * 3GQA 203501-XXX * 460V60Hz 21.3kW 1175r/min
  M2QA 200L6B-XXX * 3GQA 203502-XXX * 460V60Hz 25.3kW 1175r/min
  M2QA 225M6A-XXX * 3GQA 223301-XXX * 460V60Hz 34.5kW 1185r/min
  M2QA 250M6A-XXX * 3GQA 253301-XXX * 460V60Hz 42.6kW 1180r/min
  M2QA 280S6A-XXX * 3GQA 283101-XXX * 460V60Hz 51.8kW 1180r/min
  M2QA 280M6A-XXX * 3GQA 283301-XXX * 460V60Hz 63kW 1180r/min
  M2QA 315S6A-XXX * 3GQA 313101-XXX * 460V60Hz 86kW 1185r/min
  M2QA 315M6A-XXX * 3GQA 313301-XXX * 460V60Hz 104kW 1185r/min
  M2QA 315L6A-XXX * 3GQA 313501-XXX * 460V60Hz 127kW 1185r/min
  M2QA 315L6B-XXX * 3GQA 313502-XXX * 460V60Hz 152kW 1185r/min
  M2QA 450M6A-XXX * 3GQA 453301-XXX * 460V60Hz 184kW 1190r/min
  M2QA 450M6B-XXX * 3GQA 453302-XXX * 460V60Hz 230kW 1190r/min
  M2QA 450L6A-XXX * 3GQA 453501-XXX * 460V60Hz 287.5kW 1190r/min
  M2QA 80M8A-XXX * 3GQA 084301-XXX * 460V60Hz 0.21kW 825r/min
  M2QA 80M8B-XXX * 3GQA 084302-XXX * 460V60Hz 0.29kW 825r/min
  M2QA 90S8A-XXX * 3GQA 094101-XXX * 460V60Hz 0.43kW 835r/min
  M2QA 90L8A-XXX * 3GQA 094501-XXX * 460V60Hz 0.63kW 835r/min
  M2QA 100L8A-XXX * 3GQA 104501-XXX * 460V60Hz 0.86kW 840r/min
  M2QA 100L8B-XXX * 3GQA 104502-XXX * 460V60Hz 1.27kW 830r/min
  M2QA 112M8A-XXX * 3GQA 114301-XXX * 460V60Hz 1.73kW 845r/min
  M2QA 132S8A-XXX * 3GQA 134101-XXX * 460V60Hz 2.53kW 860r/min
  M2QA 132M8A-XXX * 3GQA 134301-XXX * 460V60Hz 3.45kW 855r/min
  M2QA 160M8A-XXX * 3GQA 164301-XXX * 460V60Hz 4.6kW 865r/min
  M2QA 160M8B-XXX * 3GQA 164302-XXX * 460V60Hz 6.33kW 865r/min
  M2QA 160L8A-XXX * 3GQA 164501-XXX * 460V60Hz 8.6kW 865r/min
  M2QA 180L8A-XXX * 3GQA 184501-XXX * 460V60Hz 12.7kW 880r/min
  M2QA 200L8A-XXX * 3GQA 204501-XXX * 460V60Hz 17.3kW 880r/min
  M2QA 225S8A-XXX * 3GQA 224101-XXX * 460V60Hz 21.3kW 885r/min
  M2QA 225M8A-XXX * 3GQA 224301-XXX * 460V60Hz 25.3kW 885r/min
  M2QA 250M8A-XXX * 3GQA 254301-XXX * 460V60Hz 34.5kW 880r/min
  M2QA 280S8A-XXX * 3GQA 284101-XXX * 460V60Hz 42.6kW 885r/min
  M2QA 280M8A-XXX * 3GQA 284301-XXX * 460V60Hz 51.8kW 885r/min
  M2QA 315S8A-XXX * 3GQA 314101-XXX * 460V60Hz
  M2QA 315M8A-XXX * 3GQA 314301-XXX * 460V60Hz
  M2QA 315L8A-XXX * 3GQA 314501-XXX * 460V60Hz 104kW 890r/min
  M2QA 315L8B-XXX * 3GQA 314502-XXX * 460V60Hz
  M2QA 355M8A-XXX * 3GQA 354301-XXX * 460V60Hz 152kW 890r/min
  M2QA 355M8B-XXX * 3GQA 354302-XXX * 460V60Hz 184kW
  M2QA 355L8A-XXX * 3GQA 354501-XXX * 460V60Hz

Teknik parametreler:

M2QA serisi motoru, IP55 koruma düzeyi ve ağır yük tasarımı ile tamamen kapalı bir kendi kendine soğutma fan tasarımı benimser.M2QA serisi motorunu çeşitli ortamlara uyumlu hale getirmek için güçlü korozyona dayanıklı dökme demir malzemesi kullanırMotorun mekanik yapısı çok dayanıklıdır, 280-355 mm merkez yüksekliğindeki motorlar için drenaj delikleri ve fişlerin standart konfigürasyonu vardır.Motor bağlantı kutusunun kurulum yöntemi üst olabilir, motorun sol ve sağ tarafları. bağlantı kutusu kendisi kurulum için döndürülebilir ve 71-132 makine tabanının bağlantı kutusu 4 * 90 yönünde döndürülebilir.160 ve üstü makine tabanları için terminal kutusu 2 * 180 yönlerinde dönebilirMotor, daha yüksek koruma seviyeleri, yalıtım seviyeleri, toz koruması, mühürleme halkaları,Yağmur geçirmez cihazlar, vb.
M2BAF serisi, ABB Motors tarafından 2021 yılında Çin pazarında özel olarak piyasaya sürülen yeni bir üründür.Uzun tasarım kullanım ömrüne sahiptir ve uzun süreli sürekli çalışmaya uygundur.. Sonlu eleman yapısal optimizasyon tasarımı yoluyla istikrarlı bir mekanik yapı elde edin.IE2 ve IE3 enerji verimliliği seviyelerine ulaşan verimliliğe sahip.

M2BAF serisi motorlar, esas olarak fanlar ve su pompaları gibi uygulamalarda OEM müşterileri için tasarlanmıştır ve su arıtma, HVAC, gıda ve içecek gibi birçok endüstri için uygundur.M2BAF'ın mükemmel kalitesi müşterilere katma değerli alan sağlar.

Uygulamalar:

2QA serisi standart üç fazlı asinkron motor, ABB2000 serisi ürünlerindeki temel seridir ve EK II Seviye verimlilik standardını karşılar.enerji tasarrufu ve çevre dostuBu motor serisi, düşük gürültülü ve uzun kullanım ömrü olan, çeşitli zorlu ortamlara uygun ve çeşitli endüstrilerde yaygın olarak kullanılan, Avrupa üretim süreçlerinin tam bir setini benimser.
