DXP-L214NEB PLC Programmable Logic Controller Oilite Bronze Shaft Bushing

DXP-L214NEB PLC Programmable Logic Controller Oilite Bronze Shaft Bushing

Marka Adı: TOPWORX
Model Numarası: DXP-L214NEB
Adedi: 1
fiyat: Anlaşılabilir
Ödeme Şartları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Tedarik Yeteneği: In Stock
Ayrıntılı Bilgiler
Place of Origin:
America
Sertifika:
dose not supply
Packaging Details:
New Original Box
Supply Ability:
In Stock
Ürün Tanımı
Detailed Product Description
Brand: TOPWORX Model: DXP-L214NEB
Origin: America Shaft Bushing: Oilite Bronze
Indicator Dome: Polycarbonate, UV F1 Rated Shaft: 304 Stainless Steel Standard
Highlight:

industrial programmable controller

,

industrial automation using plc







PLC Programmable Logic Controller Emerson TOPWORX DXP-L214NEB







FOUNDATION Fieldbus digital communication:

• Link active scheduler capability/Link Master (LAS)

• Pre-instantiated** blocks include Resource Block (RB), Transducer Block (TB), Analog Input (AI) Function Block, Discrete Output (DO) Function Block, 2 Discrete Input (DI) Function Block, Proportional, Integral, and Derivative (PID) Function Block

• Function block instantiation, live download, auto commission/replacement

• Fast function block execution time: DI: 15ms, AI: 15ms, DO: 20ms, PID: 20ms

• Easy integration into AMS and DeltaV systems

• Device Dashboards powered by enhanced Electronic Device Description Language (EDDL)







Position sensing/monitoring

• Optional GO switches for open/close status

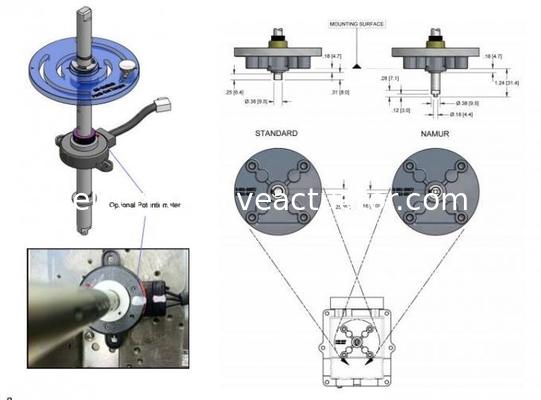

• Optional potentiometer for position percentage indication, can be used for any rotation range between 20 and 320 degrees. End position offsets are adjustable.







Control and monitor inputs and outputs

• Supports single/double and normal/reverse acting actuators

• Local LEDs for visual indication

• Local push buttons for calibration

• Remote configuration from control system or field communicator

• Stroke valve method

• Cycle count monitoring

• Open/close time monitoring

• Temperature monitoring

• Open/short circuit protection

• Integrated field diagnostics

• Embedded NAMUR NE 107 diagnostics
