Black HMI Touch Screen Terminal Allen Bradley Panelview 550 2711-K5A10 Ser H

Black HMI Touch Screen Terminal Allen Bradley Panelview 550 2711-K5A10 Ser H

Marka Adı: Allen Bradley (AB)
Model Numarası: 2711-K5A10
Adedi: 1
fiyat: Anlaşılabilir
Ödeme Şartları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Tedarik Yeteneği: In Stock
Ayrıntılı Bilgiler
Place of Origin:
USA
Sertifika:
CE
Packaging Details:
New Original Box
Supply Ability:
In Stock
Ürün Tanımı
Detailed Product Description
Brand: Allen Bradley (AB) Model: 2711-K5A10
Product Name: Panelview Series: 2711
SER: H PLUS: 550
FRN: 4.48 Place Of Origin: USA
Highlight:

hmi touch panel

,

industrial hmi panels





HMI Touch Screen AB Allen Bradley PanelView 550 2711-K5A10 Ser. H HMI FRN 4.48 DeviceNet



About 2711-K5A10


The obsolete Allen Bradley Panelview 550 2711-K5A10 is an operator terminal that allows the user to interface with their machine. This Panelview has a 5.5 in. Monochrome LCD blue mode Display.
This HMI allows the user to connect using Panelbuilder 32 software and a DeviceNet Communication and RS-232 Printer Port communication port with a 2711-NC13 communication cable(s). The user is able to control the unit using the Keypad(F1-F10) to input information and commands.
This unit is powered using 120 VAC power. This unit has the following internal memory: 170 KB application runtime. This unit has an internal backlight replacement part number of 2711-NL1. The approximate shipping weight and dimensions are 6 lbs and 14x11x8 inches. The most common Series are A,B,C,D,E,F,G,H and the most common firmware include 1.00-4.48.



QUICK DETAILS

  1. Brand :Allen Bradley (AB)
  2. Model : 2711-K5A10
  3. Place of Origin : USA


DESCRIPTION

  • Touch Display Screen
  • Operator Keypad Terminal
  • PanelView



SPECIFITIONS

art Number: 2711-K5A10
Product Line: Panelview 550
Display Size: 5.5 in.
Display Color: Monochrome LCD blue mode
Input Type: Keypad(F1-F10)
Communication: DeviceNet Communication and RS-232 Printer Port
Input Power: 120 VAC
Software: Panelbuilder 32
Memory: 170 KB application runtime
Backlight: 2711-NL1
Communication Cable: 2711-NC13
Shipping Weight: 6 lbs
Shipping Dimensions: 14x11x8 inches
Series: A,B,C,D,E,F,G,H
Firmware: 1.00-4.48







PanelView 550 Terminal Features

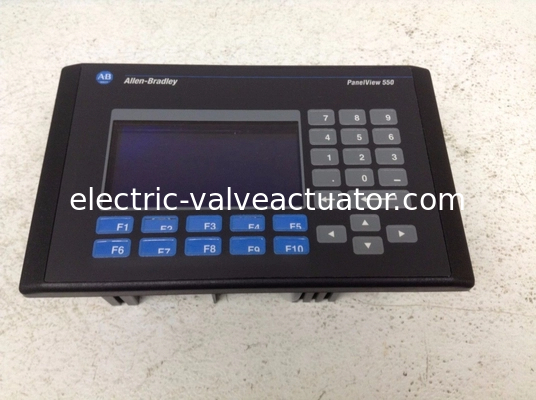

PanelView 550 Terminal Features (front)
Black HMI Touch Screen Terminal Allen Bradley Panelview 550 2711-K5A10 Ser H 0

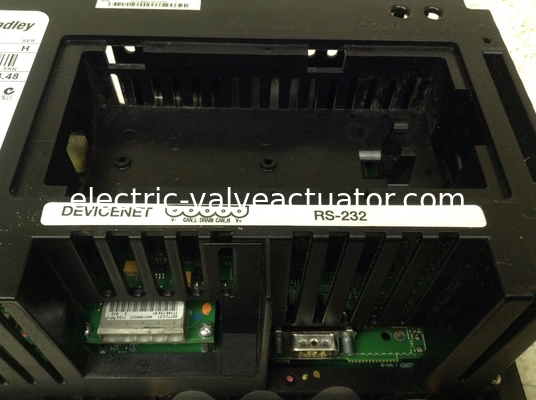

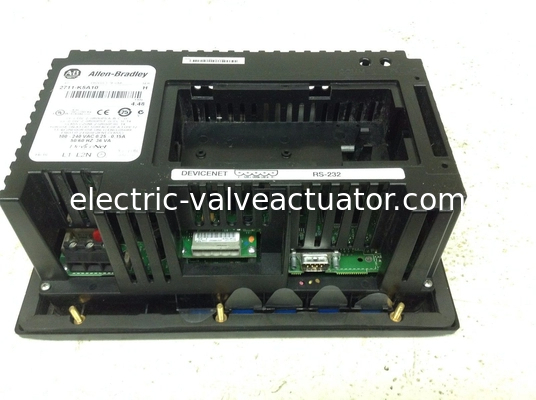

PanelView 550 Keypad or Keypad and Touch Screen Terminals (back)

Black HMI Touch Screen Terminal Allen Bradley Panelview 550 2711-K5A10 Ser H 1


# Feature Description
1 Power Connection Terminals Connects to external power source.

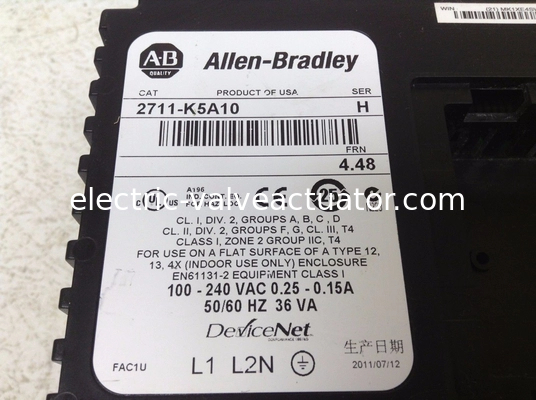

2 Nameplate Label Provides product information.
3 Sealing Gasket Seals the front of the terminal to an enclosure or panel.
4 COMM Status (Green) Indicator Indicates when communication is occurring.
5 FAULT Status (Red) Indicator Indicates firmware or hardware faults.
6 Memory Card Slot Accepts a memory card which stores applications.
7 Access Cover Provides access to the replaceable backlight lamp.
