Schneider Electric TSX3710164DTK1 TSX Micro 37 10 PLC configurations

Name: Schneider Electric TSX3710164DTK1 TSX Micro 37 10 PLC configurations
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: TSX3710164DTK1
Price: 210.00 USD
Availability: InStock

Marka Adı:	Schneider
Model Numarası:	TSX3710164DTK1
Adedi:	1
fiyat:	Negotiations

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Fransa

Ambalaj bilgileri:

Yeni Orijinal Kutu

Vurgulamak:

Schneider Electric TSX Micro PLC

TSX3710164DTK1 PLC configurations

Low Voltage Protection PLC

Ürün Tanımı

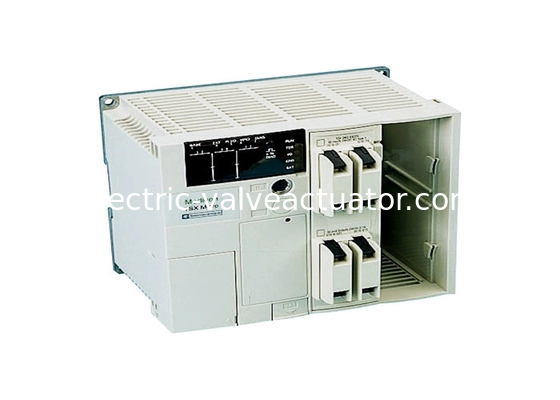

Schneider Electric TSX3710164DTK1 TSX Micro 37 10 PLC configurations

Large Image

Product Details

Place of Origin	France
Brand Name	Schneider
Certification	CE
Model Number	TSX3710164DTK1

Payment & Shipping Terms

Minimum Order Quantity	1PC
Price	1-1000USD/pc
Packaging Details	new original package
Delivery Time	2-3 working days
Payment Terms	T/T, Western Union, Paypal
Supply Ability	10 pcs/month

Contact Now

Detailed Product Description

Range Of Product	Modicon Premium	Country Of Origin	France
Brand	Schneider	PN	TSX3710164DTK1
Number Of Slots	2	Net Weight	1.82 Kg

Highlights

modicon quantum processor
modicon quantum cpu

Technical Specifications

Main range of product	Modicon TSX Micro automation platform
Product or component type	Modular base controller
Primary voltage	24 V 19.2…30 V DC
Input current	2 mA 60 A
Immunity to microbreaks	10 ms
Complementary number of slots	2
Module type	HE10 connector discrete I/O
Discrete input number	32 24 V DC
Discrete output number	32 solid state
Integrated connection type	1 serial link Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock	With
Memory description	Internal RAM 14 Kwords data Flash 15 Kwords data
Maximum size of object areas	1 %MWi internal words 256 %Mi 128 %KWi constant words
Execution time per instruction	0.25 µs Boolean without PCMCIA card 4.81 µs arithmetic REAL floating without PCMCIA card
Execution time for 1 Kinstruction	3.03 100 % Boolean without PCMCIA card 0.25 65 % Boolean and 35 % numerical without PCMCIA card
Application structure	1 master task 8 event tasks 1 fast task
System overhead	1.9 ms master task
Protection type	Overload protection Short-circuit
Total useful secondary power	16 W
Electromagnetic compatibility	Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2

Environmental Specifications

Ambient air temperature for operation	32…140 °F (0…60 °C)
Ambient air temperature for storage	-13…158 °F (-25…70 °C)
Relative humidity	10…95 % without condensation for operation 5…95 % without condensation for operation
Operating altitude	0...6561.68 ft (0...2000 m)
Width	11.13 in (282.7 mm)
Height	5.94 in (151 mm)
Depth	5.98 in (152 mm)
Net weight	4.01 lb(US) (1.82 kg)

Ordering and Shipping Details

Category	22556-TSX MICRO, PL7 MICRO & ACCESS
Discount Schedule	PC14
GTIN	00785901766261
Package weight(Lbs)	3.95 lb(US) (1.792 kg)
Returnability	No
Country of origin	FR

Compliance Information

California proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov

REACh Regulation	REACh Declaration
EU RoHS Directive	Not applicable, out of EU RoHS legal scope
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
