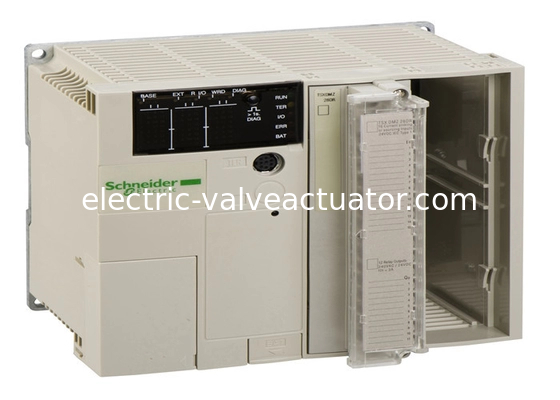

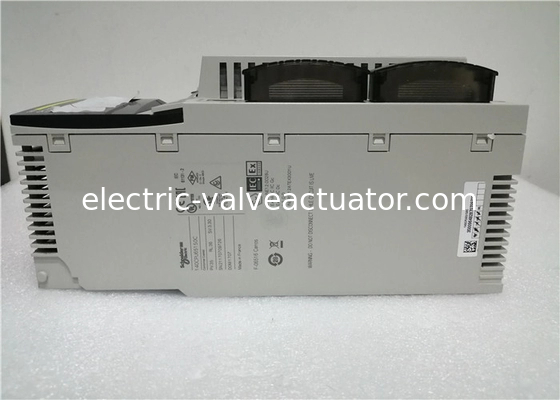

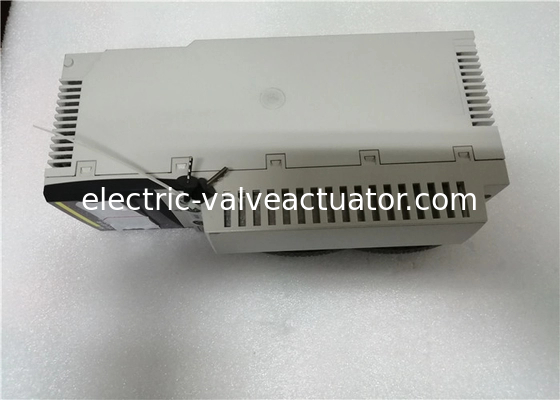

Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC configurations

Name: Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC configurations
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: TSX3721001
Price: 210.00 USD
Availability: InStock

Marka Adı:	Schneider
Model Numarası:	TSX3721001
Adedi:	1
fiyat:	Negotiations

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Fransa

Çıktı Akımı:

0,5A

Ambalaj bilgileri:

Yeni Orijinal Kutu

Vurgulamak:

Schneider Electric TSX Micro PLC

TSX3721001 PLC configurations

Low Voltage Protection PLC

Ürün Tanımı

Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC Configurations

Key Attributes

Output Current	0.5A

Product Overview

Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC configurations

Technical Specifications

Main range of product

Modicon TSX Micro automation platform

Product or component type

Modular base controller

Primary voltage

100...240 V 90…264 V AC

Input current

2 mA 60 A

Immunity to microbreaks

20 ms

Output current

0.5 A

Complementary number of slots

Integrated connection type

1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s

Realtime clock

With

Memory description

Flash 15 Kwords data
Internal RAM 20 Kwords data
Internal RAM (with PCMCIA card) 128 Kwords program and data
Internal RAM 128 Kwords data storage

Maximum size of object areas

128 %KWi constant words
256 %Mi
1 %MWi internal words

Execution time per instruction

0.13 µs Boolean without PCMCIA card
4.5 µs arithmetic REAL floating without PCMCIA card
0.19 µs Boolean with PCMCIA card
4.5 µs arithmetic REAL floating with PCMCIA card

Execution time for 1 Kinstruction

5.88 100 % Boolean without PCMCIA card
0.27 65 % Boolean and 35 % numerical without PCMCIA card
4 100 % Boolean with PCMCIA card
0.266 65 % Boolean and 35 % numerical with PCMCIA card

Application structure

16 event tasks
1 master task
1 fast task

System overhead

1.6 ms for master task

Protection type

Overload protection
Short-circuit

Total useful secondary power

16 W

Electromagnetic compatibility

Electrostatic discharge conforming to IEC 1000-4-2 level 3
Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3
Resistance to fast transient conforming to IEC 1000-4-4 level 3
Immunity to impulse waves conforming to IEC 1000-4-5
Damped oscillatory wave conforming to IEC 1000-4-12
Immunity to electromagnetic interference conforming to IEC 61131-2

Environmental Specifications

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 % without condensation for operation
5…95 % without condensation for operation

Operating altitude

0...2000 m

Dimensions (W x H x D)

341.4 mm × 151 mm × 152 mm

Net weight

1.72 kg

Compliance & Sustainability

REACh Regulation

REACh Declaration

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

China RoHS declaration

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty

18 months
