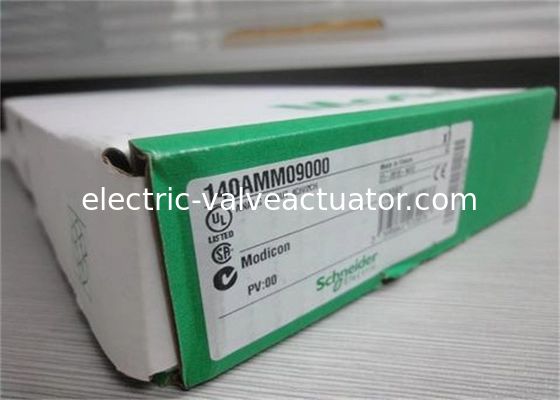

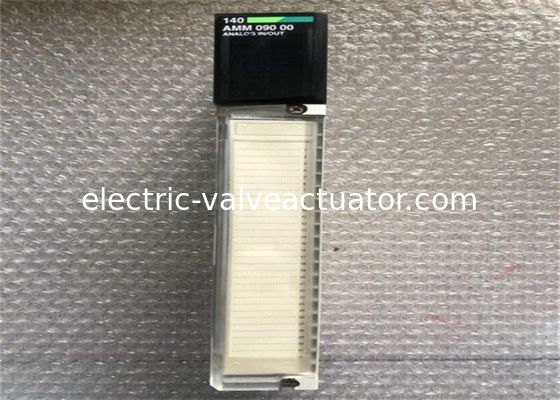

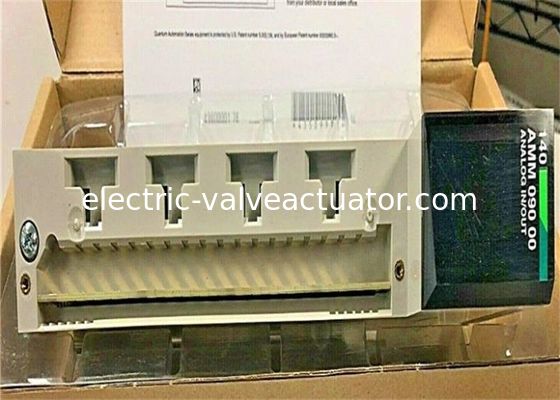

Schneider Modicon Quantum PLC 140AMM09000 ANALOG IN/OUT IO MODULEv

Name: Schneider Modicon Quantum PLC 140AMM09000 ANALOG IN/OUT IO MODULEv
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140AMM09000
Price: 210.00 USD
Availability: InStock

Marka Adı:	Schneider
Model Numarası:	140AMM09000
Adedi:	1
fiyat:	Negotiations

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

France

Packaging Details:

New original box

Vurgulamak:

Schneider Modicon Quantum PLC module

140AMM09000 analog IO module

Modicon Quantum PLC with warranty

Ürün Tanımı

Schneider Modicon Quantum PLC 140AMM09000 ANALOG IN/OUT IO MODULE

Quick Details

SCHNEIDER ELECTRIC
MODICON
140AMM09000
IO MODULE
BI-DIRECTIONAL
ANALOG IN/OUT
4CH/2CH
One Year Warranty

Specifications

Manufacturer	Schneider Electric
Series	Modicon Quantum
Module format	Standard
Type of filter	Single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit
I/O modularity	6 channels
Addressing requirement	2 output words \| 5 input words
Analogue input number	4
Analogue input type	Unipolar voltage 0...5 V 15 bits DC Unipolar voltage 0...10 V 16 bits DC Unipolar offset voltage 1...5 V 14 bits DC Unipolar offset current 4...20 mA 14 bits DC Unipolar current 0...20 mA 15 bits DC Bipolar voltage +/- 5 V 15 bits DC Bipolar voltage +/- 10 V 16 bits DC Bipolar current +/- 20 mA 15 bits DC
Absolute maximum input	+/- 50 V voltage \| +/- 25 mA current
Input impedance	> 250 Ohm current \| > 10 MOhm voltage
Offset	+/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit
Gain shift	+/- 0.002 of full scale maximum 0...60 °C input circuit
Common mode rejection	> 80 dB 50/60 Hz input circuit
Analogue output number	2
Analogue output range	4...20 mA
Analogue output resolution	12 bits
Loop voltage	7...30 V DC output circuit \| <= 60 V DC with external resistance output circuit
Voltage drop	7...30 V DC 20 mA
Setting time	900 µs to +/- 0.1 % of the final value output circuit
External power requirement	7...30 V output circuit
Absolute accuracy error	+/- 0.20 % of full scale at 25 °C output circuit +/- 0.05 % of full scale maximum at 25 °C input circuit +/- 0.03 % at 25 °C input circuit +/- 0.007 %/°C of full scale maximum at 0...60 °C output circuit +/- 0.004 % of full scale at 0...60 °C output circuit
Linearity	Monotonic +/- 1 LSB output Monotonic +/- 1 LSB input 2.4 % over range, and - 9.6 % under range current 2.4 % over and under range voltage
Update time	320 ms input circuit \| 15 ms output circuit
Fault type	Status byte output circuit Overtacking scale (unipolar) input circuit Open circuit input/output circuit
Isolation between channels	750 V DC for 1 minute \| 500 V AC for 1 minute
Isolation between channels and bus	750 V DC for 1 minute \| 500 V AC for 1 minute
Isolation between input channels and output channels	750 V for 1 minute \| 500 V for 1 minute
Marking	CE
Local signalling	6 LEDs red channel fault 6 LEDs green channel is turned on 1 LED red external fault 1 LED green bus communication is present (Active)
Bus current requirement	350 mA

Quantum PLC Module Features

Quantum PLC module uses modern large-scale integrated circuit technology, manufactured through strict production processes. The internal circuit employs advanced anti-interference technology, ensuring high reliability. The Quantum PLC includes hardware fault self-detection functionality that can promptly alert users to failures.

Programmable in the Concept of peripheral components with fault self-diagnosis program capability
All modules support hot-swapping without system downtime
LED status indicators provide visual monitoring of CPU and I/O template channel status
Complete supporting facilities with comprehensive functions and strong applicability
Advanced two-machine hot-standby system with simple configuration and convenient operation
Fast switching time (within one PLC scanning cycle) during failover

Applications

Our products are widely used in CNC machinery, metallurgy, petroleum and natural gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, and transmission and distribution industries.
