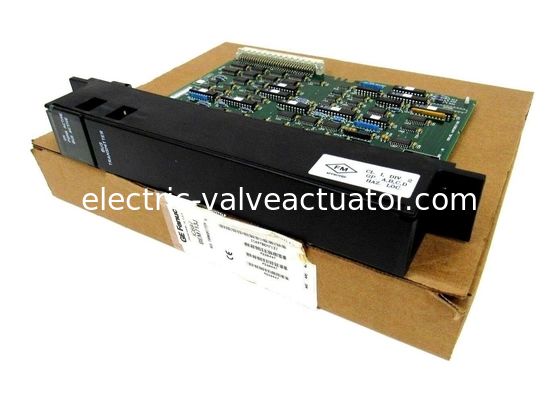

GE FANUC IC697BEM713 ， Bus Transmitter Module ， 500 Kbytes/Sec

Name: GE FANUC IC697BEM713 ， Bus Transmitter Module ， 500 Kbytes/Sec
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC697BEM713
Price: 210.00 USD
Availability: InStock

Marka Adı:	GE
Model Numarası:	IC697BEM713
Adedi:	1
fiyat:	Negotiations

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Amerika

Yuva Gerekli:

Voltaj girişi:

5 Volt DC

Mevcut Çekiliş:

1.4 amper

Durum LED'leri:

Ambalaj bilgileri:

Yeni Orijinal Kutu

Vurgulamak:

GE FANUC IC697BEM713 bus transmitter module

ESP controller module with 500 Kbytes/Sec

GE FANUC bus transmitter with warranty

Ürün Tanımı

GE FANUC IC697BEM713, Bus Transmitter Module, 500 Kbytes/Sec

Product Description

The IC697BEM713 is a Bus Transmitter Module (BTM) from the series 90-70 manufactured by GE Fanuc. The IC697BEM713 module allows expansion from the main CPU rack when the system requires additional modules (up to seven added IC697 PLC racks). The high performance parallel programming function is an important feature. Additionally, this BTM is easy to configure and does not require the use of DIP switches.

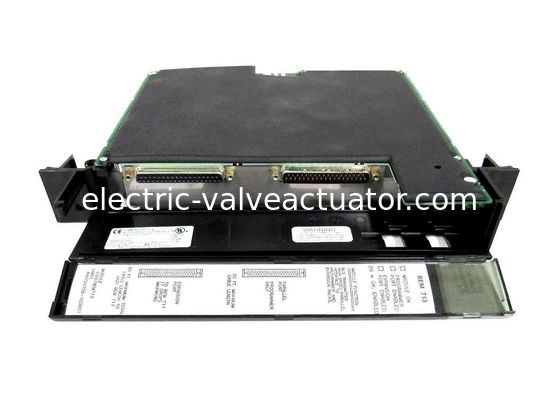

The IC697BEM713 module resides in a single slot and has two connectors:

A top connector for attaching to the programming device
A bottom connector for daisy-chained arrangement via BRMs to expansion racks

The bus transmitter module should be configured using the MS-DOS or Windows programming software configuration function.

Status Indicators

Three status LEDs alert the user to issues with the port and/or module:

MODULE OK LED (Top): Shows ON when CPU software completes BTM configuration and has polled each system expansion rack. OFF indicates these conditions are not met.
Programmer Port Enabled LED (Middle): Blinks or shows ON when programmer and PLC are communicating. OFF when not communicating.
Expansion Port Enabled LED (Bottom): Blinks ON when BTM is communicating with Bus Receiver Modules. OFF if not communicating.

Installation Notes

Have the appropriate programmer controller manual for reference
Power must be OFF before installation
Module cannot be installed in slot 1
Must be installed to the right of any IC697 interrupt source modules

Technical Specifications

Feature	Specification
Series	Series 90-70
Expansion Capacity	Up to 7 additional IC697 PLC racks
Power Requirements	5V DC, 1.4A
Data Rate (Both Interfaces)	500 Kbytes/Sec
Maximum Cable Length	50 feet
Slot Requirements	Single slot (cannot be installed in slot 1)

Note: The rack power should be turned off prior to module installation and can be turned on after the module is installed in the rack.
