HYDAC EDS3446 Series 0-250 Bar Pressure Transducer with Stainless Steel Measuring Cell and IP65 Protection

Name: HYDAC EDS3446 Series 0-250 Bar Pressure Transducer with Stainless Steel Measuring Cell and IP65 Protection
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: EDS3446-3-0250-000
Price: 1.00 USD
Availability: InStock

Marka Adı:	HYDAC
Model Numarası:	EDS3446-3-0250-000
Adedi:	1
fiyat:	Anlaşılabilir

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Almanya

Ağırlık:

0,5

Basınç Aralığı:

100-350Bar

Ambalaj bilgileri:

yeni orijinal kutu

Vurgulamak:

0-250 Bar Pressure Transducer

Stainless Steel Measuring Cell Pressure Transducer

IP65 Protection Pressure Transducer

Ürün Tanımı

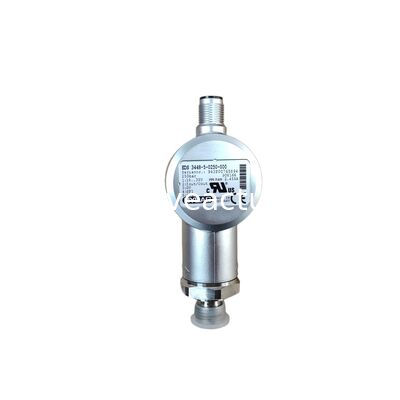

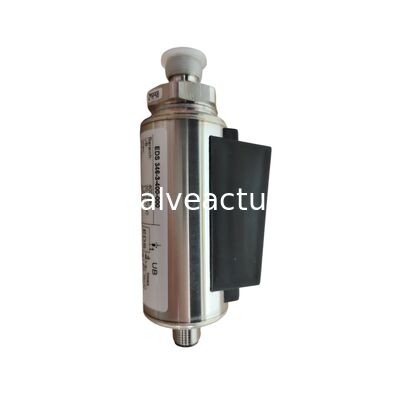

HYDAC EDS3446 Series Pressure Transducer EDS3446-3-0250-000

The HYDAC EDS3446-3-0250-000 is a high-performance electronic pressure switch and transducer designed for reliable pressure monitoring in industrial hydraulic, pneumatic, and lubrication systems. Engineered with German precision, this model offers a measurement range of 0-250 bar relative pressure, combining accurate sensing, flexible output, and robust construction for demanding operating environments.

Key Features & Construction

Stainless steel measuring cell with high-quality ceramic sensor core

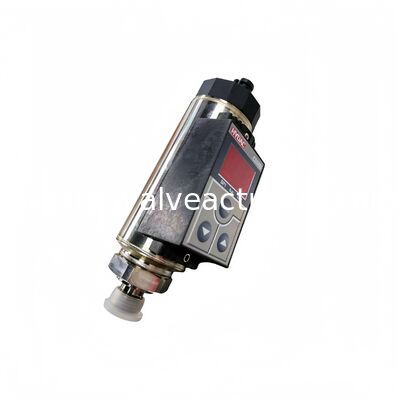

Clear 4-digit digital display rotatable on two axes for optimal readability
Multiple pressure unit support (bar, psi, MPa) for universal usability
Configurable switching outputs and selectable analog signals (4-20 mA or 0-10 V)
Adjustable switch points, window functions, and on/off delays up to 99.99 seconds
Excellent stability, corrosion resistance, and long service life

Technical Specifications

Pressure Range	0-250 bar relative pressure
Power Supply	10-30 V DC
Operating Temperature	-25°C to +85°C
Ingress Protection	IP65 rated
Output Signals	Configurable switching outputs, 4-20 mA or 0-10 V analog
EMC Immunity	High resistance to electromagnetic interference

Performance Benefits

Built for harsh industrial environments, this transducer offers outstanding shock and vibration resistance with minimal long-term drift. The compact design eliminates the need for extra adapters and supports easy configuration for efficient installation and maintenance.

Industrial Applications

Widely applied in hydraulic power units, machine tools, construction machinery, and automation systems, the EDS3446-3-0250-000 delivers dependable pressure control, system protection, and process monitoring. Its durable construction and reliable performance make it ideal for both original equipment and replacement installations worldwide.
