Siemens SITRANS LVL200 Vibrating Fork Level Switch with 280mm Probe Length and Relay Output for 64 Bar Pressure Resistance

Name: Siemens SITRANS LVL200 Vibrating Fork Level Switch with 280mm Probe Length and Relay Output for 64 Bar Pressure Resistance
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: 7ML5747-2AA14-1AA0-Z-Y01
Price: 210.00 USD
Availability: InStock

Marka Adı:	Siemens
Model Numarası:	7ML5747-2AA14-1AA0-Z-Y01
Adedi:	1
fiyat:	Anlaşılabilir

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Almanya

Proses sıcaklığı:

-50~+150°C

İşlem baskısı:

-1 ila +64 bar (-100 ila +6400 kPa)

Besleme gerilimi:

DC; 20 - 72 VDC

Güç tüketimi iletişimi:

8VA

Güç Tüketimi DC:

Maksimum 1,3 W

Prob uzunluğu:

280 mm

Koruma Derecesi:

IP66 / IP67

Özelleştirmeyi destekliyor mu?:

Evet

Ambalaj bilgileri:

yeni orijinal kutu

Vurgulamak:

280mm probe length Level Switch

Relay output Vibrating Fork Level Switch

64 bar pressure resistance SITRANS LVL200

Ürün Tanımı

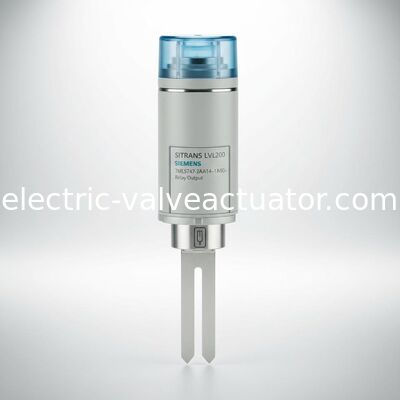

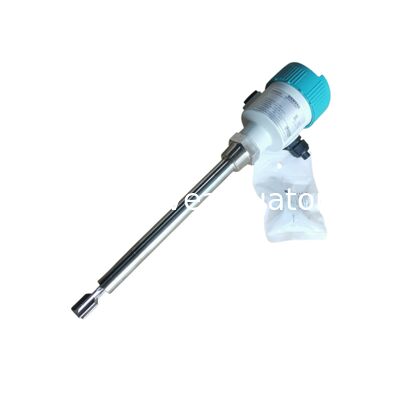

Siemens SITRANS LVL200 Vibrating Fork Level Switch

The Siemens SITRANS LVL200 Vibrating Fork Level Switch, model 7ML5747-2AA14-1AA0-Z-Y01, delivers precise liquid and slurry level detection with relay output capability. Designed for harsh industrial environments, this top-mounted instrument features a 280mm probe length and rigid extension for reliable performance in overfill protection, high/low level monitoring, and pump dry-run prevention applications.

Advanced Technology & Operation

Utilizing advanced vibrating fork technology with piezoelectric drive, the instrument oscillates at approximately 1,200 Hz. Media contact triggers an immediate frequency shift and reliable relay output, ensuring accurate detection even in challenging conditions with turbulence, bubbles, or buildup. The switch operates effectively with media densities ≥ 0.5 g/cm³, accommodating diverse liquids and slurries.

Robust Construction & Specifications

Model	7ML5747-2AA14-1AA0-Z-Y01
Probe Length	280mm
Output	Relay
Maximum Pressure	64 bar g
Maximum Temperature	250 °C
Process Connection	316L Stainless Steel 1" NPT with PFA Coating
Extension Options	Rigid extension customizable up to 6 meters

Key Features

Vibrating fork technology for reliable level detection
Relay output for direct control applications
Corrosion-resistant 316L stainless steel construction
PFA coating for enhanced chemical resistance
SIL 2 certified (IEC 61508/IEC 61511)
Built-in fault monitoring for safety-critical applications
Suitable for hygienic and hazardous areas
Compliant with RoHS, WEEE, and relevant industry approvals

Industry Applications

Ideal for chemical processing, oil & gas, pharmaceutical manufacturing, and food & beverage industries. Provides uninterrupted level control for storage tanks, pipelines, and process vessels in demanding operational environments.

The Siemens SITRANS LVL200 ensures consistent performance and reliable level monitoring in the most challenging industrial applications, backed by Siemens quality and engineering excellence.
