Boiler ignition system Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod spark gap

Marka Adı:	OEM
Model Numarası:	XDZ-1
Adedi:	1 Takım
Ödeme Şartları:	T/T
Tedarik Yeteneği:	200

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Gerilim:

2500V

Enerji:

20J

Kıvılcım sıklığı:

12-14 zamanlar /s

Çerçeve Boyutu:

300*200*120

İplik:

M18*1.0 M18*1.5 M27*1.5

Sıcaklık:

1300 ℃

Çubuk çapı:

Φ12 、 φ16 、 φ18

Ambalaj bilgileri:

Ahşap kutu paketleme

Yetenek temini:

200

Vurgulamak:

boiler ignition system Φ18 spark gap

ignition gun rigid rod spark

high performance ignition system spark rod

Ürün Tanımı

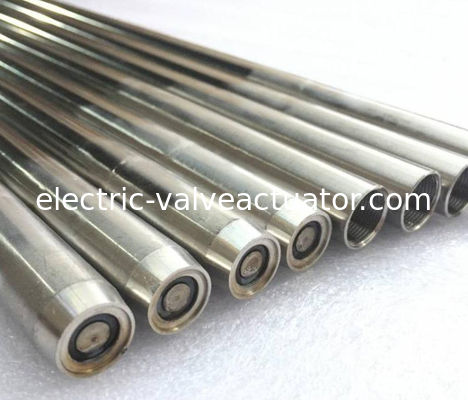

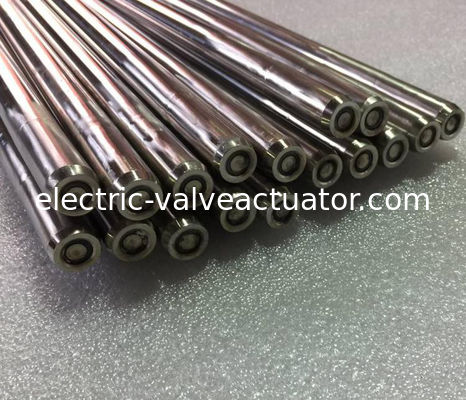

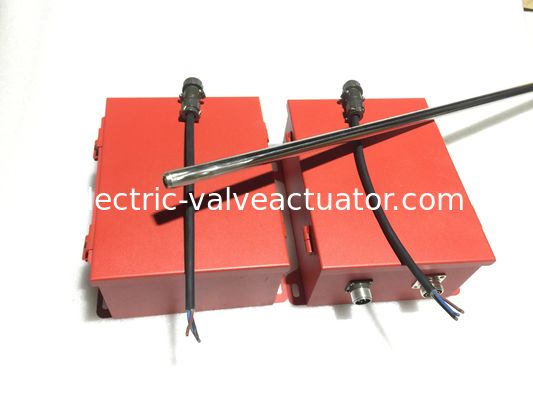

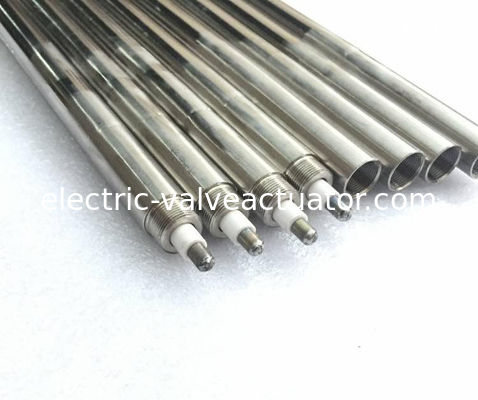

Boiler Ignition System Φ18 Ignition Gun

This high-energy ignition system features a spark gap rigid rod spark rod designed for reliable boiler ignition applications.

Applications

Boiler ignition system

Product Overview

This ignition system utilizes DC voltage input from ignition cables to discharge high-energy electric sparks at the forming head, providing reliable ignition for industrial boiler systems.

Technical Advantages

Low ignition voltage
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Product Series

Model	Description
XDH-1G	High pressure gap ignitor
XDH-2Z	DC charging portable ignition
XDH-6B	Explosion-proof high-energy ignition
XDH-6L	Portable high-energy ignition
XDH-12T	Portable high-energy ignition
XDH-20B	Explosion-proof high-energy ignition
XDH-20C	High-energy ignition
XDH-20L	High-energy ignition
XDH-50	High-energy ignition

Custom designs available to meet specific user requirements beyond standard product series.

Performance Parameters

Parameter	Unit	6 Series	XDH-20 Series	XDH-50
Energy Storage	J	2	10 \| 20	50
Working Voltage	V	DC12	AC220	AC220
Output Voltage	VDC	2500±5%
Spark Frequency	Times/sec	1-3	2-10 Adjustable	2-10 Adjustable
Duty Cycle (On/Off)	S	30/60	120/60	120/60
