DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction

Name: DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: DR-082
Price: 210.00 USD
Availability: InStock

Marka Adı:	OEM
Model Numarası:	DR-082
Adedi:	1
fiyat:	Anlaşılabilir

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Reaktans katsayısı:

0,1

Ambalaj bilgileri:

yeni orijinal kutu

Ürün Tanımı

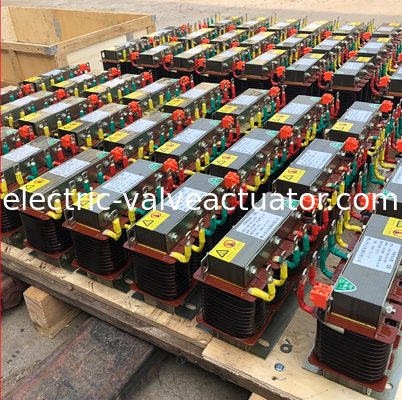

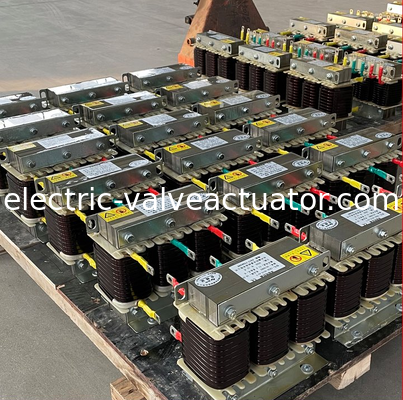

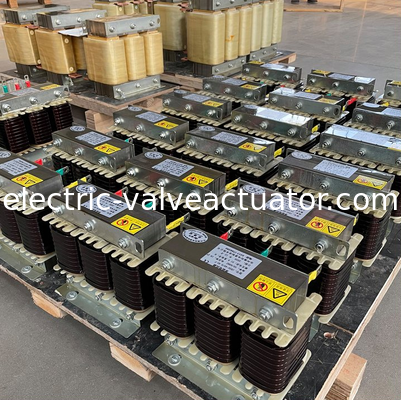

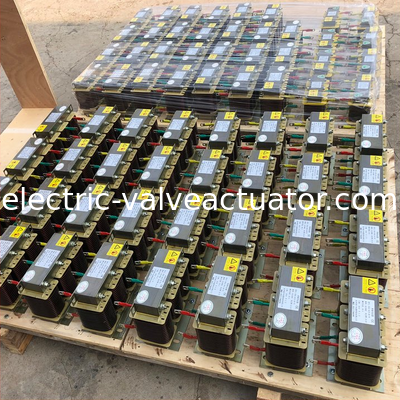

DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction

The DR-082 CKSJ-2.1/0.48 7% Series Reactor is a high-performance inductive component specifically designed for capacitor bank power factor correction (PFC) systems. Engineered to work seamlessly with low-voltage reactive power compensation cabinets, it plays a critical role in enhancing power quality, protecting capacitors, and ensuring stable grid operation.

Harmonic Suppression

With a rated reactance rate of 7%, this series reactor is optimally tuned to suppress 5th and 7th harmonics—common in industrial grids with nonlinear loads such as rectifiers and converters. By connecting in series with capacitor banks, it effectively shifts the resonant frequency away from common harmonic ranges, preventing harmonic amplification that could damage capacitors and other critical electrical equipment.

Design & Performance

Compact dry-type iron core design
Excellent thermal stability: iron core temperature rise ≤85K, coil temperature rise ≤95K
Robust insulation level of 3kV/min for electrical safety and durability
Reliable performance in harsh operating conditions

Operational Benefits

This reactor excels in limiting capacitor closing inrush current and operating overvoltage, significantly extending the service life of capacitor banks and reducing maintenance costs. It seamlessly integrates with 400V and 660V circuit systems, providing strong adaptability for various industrial and commercial PFC applications.

Applications

Ideal for manufacturing, metallurgy, and other industrial scenarios, the DR-082 CKSJ-2.1/0.48 7% Series Reactor delivers efficient harmonic suppression, stable power factor improvement, and reliable equipment protection—making it an indispensable component for optimized power compensation systems.
