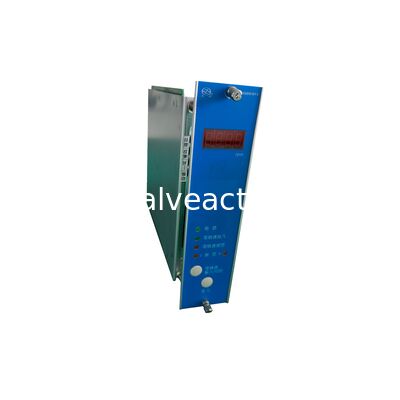

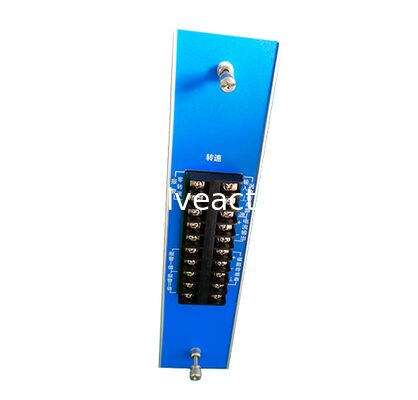

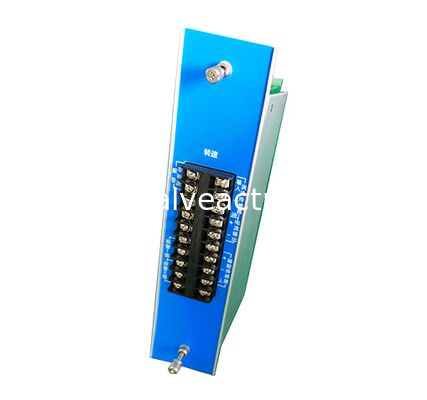

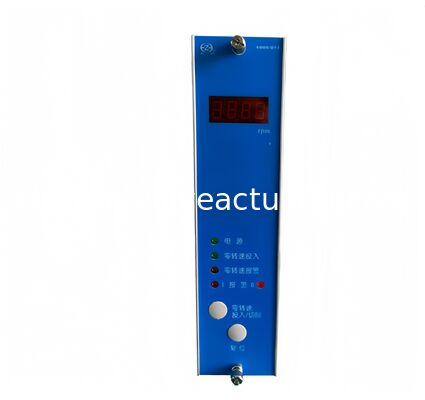

Zhong He 8000/051 Speed Monitor Module | 1-Speed / Zero-Speed Protection for Steam Turbines

The Zhong He 8000/051 Speed Monitor Module is a cutting-edge, industrial-grade protection device specifically engineered for 1-speed and zero-speed monitoring of steam turbines, a critical component in power generation, industrial processing, and heavy machinery systems. Designed to prioritize operational safety, precision, and reliability, this module serves as a vital safeguard against equipment damage, operational downtime, and potential safety hazards caused by abnormal speed conditions.

Crafted for harsh industrial environments, the 8000/051 module integrates advanced frequency and period measurement technologies, ensuring accurate speed detection across the entire operational range of steam turbines—from ultra-low rotational speeds (down to ≤1r/min) to maximum operating RPM. It seamlessly receives pulse signals from magnetic or proximity sensors installed on the turbine shaft, converting these signals into precise speed data for real-time monitoring and control.

At its core, the module delivers comprehensive protection functions tailored to steam turbine operations. It features reliable zero-speed detection, which is essential for controlling turning gear engagement during startup and shutdown, preventing mechanical wear and damage from rotor stall. Additionally, it provides configurable over-speed and under-speed protection, triggering immediate alarm signals and emergency trip relays when speed deviates from pre-set safe thresholds, thus avoiding catastrophic failures.

Equipped with dual-channel redundant inputs, the 8000/051 enhances fault tolerance and operational safety, ensuring continuous monitoring even if one sensor fails. It also offers an isolated 4–20mA analog output, enabling seamless integration with DCS, PLC systems, and data recorders for remote monitoring, data logging, and centralized control. The module supports on-site parameter configuration via onboard software, allowing users to adjust gear teeth count, transmission ratios, alarm thresholds, and trip settings without replacing hardware, adapting to diverse turbine models and operational requirements.

With a compact, modular design, the 8000/051 is DIN-rail mountable and compatible with standard 8000B series chassis, facilitating easy installation, maintenance, and system expansion. It adheres to IEC 61508 / SIL-aligned safety standards, making it suitable for critical steam turbine applications in power plants, industrial boilers, turbo-generators, and other rotating machinery where speed control and protection are non-negotiable.

Choosing the Zhong He 8000/051 means investing in a robust, cost-effective solution that combines precision, durability, and safety. It minimizes unplanned downtime, extends equipment lifespan, and ensures compliance with industrial safety regulations, making it the ideal speed monitor module for steam turbine protection.
