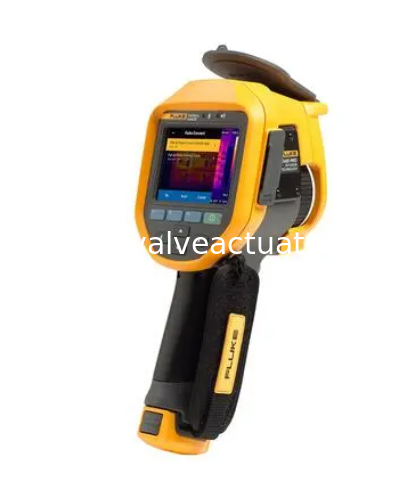

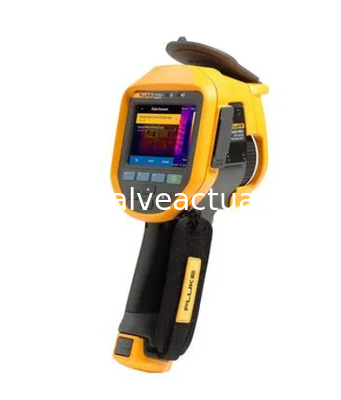

Fluke Ti480 PRO Industrial Infrared Thermal Imaging Camera | Professional Thermal Imager

Name: Fluke Ti480 PRO Industrial Infrared Thermal Imaging Camera | Professional Thermal Imager
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: MDA-550 Serisi
Price: 210.00 USD
Availability: InStock

Marka Adı:	Fluke
Model Numarası:	MDA-550 Serisi
Adedi:	1
fiyat:	Negotistical

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

OEM

Ambalaj bilgileri:

yeni orijinal kutu

Ürün Tanımı

Fluke Ti480 PRO Industrial Infrared Thermal Imaging Camera | Professional Thermal Imager

Key Features

IFOV (Spatial Resolution) with standard lens: 0.93 mRad, D:S 1065:1
Detector resolution: 640 x 480 (307,200)
Superpixel function: Captures and combines 4 times the data to generate a 1280 x 960 (614,400 pixels) image
MultiSharp™ multi-point autofocus: Enables capturing near and far focus images across the entire field of view
LaserSharp® laser autofocus: Provides a sharp image that is always in focus
Laser rangefinder: Calculates distance to target for precise focus and displays distance on screen
Advanced manual focus capability
Rugged and durable 3.5-inch (landscape) 640 x 480 LCD touchscreen
Comfortable and durable design for one-handed use
Digital zoom: 2x and 4x

Temperature Measurement

Measurement Range	-10 °C to 1000 °C (14 °F to 1832 °F)
Accuracy	±2 °C or 2% (whichever is greater at 25 °C)
Thermal Sensitivity (NETD)	≤0.05 °C (50 mK) at 30 °C target temperature

Correction Features

Display emissivity correction (numerical and tabular)
Display reflective background temperature compensation
Display transmittance correction

Connectivity & Software

Wireless connectivity to PC, iPhone®, iPad® (iOS 4s+), Android™ 4.3+, and WiFi LAN
Compatible Fluke Connect® App: Automatic image capture and upload to smartphone
Optional Fluke Connect® Software: Asset assignment and work order creation
Fluke Connect® Instant Upload: Automatic upload to Fluke Cloud™ via building WiFi
Compatible with Fluke Connect® Tools: Wireless connection to enabled tools

Imaging Technology

IR-Fusion® Infrared-Visible Fusion Technology
AutoBlend™ Modes: Min, Mid, Max IR with continuous variability
Picture-in-Picture (PIP) capability
Built-in Digital Camera (Visible Light): 5 MP

Standard Lens

IFOV (Spatial Resolution)	0.93 mRad
Field of View	34°H x 24°V
Minimum Focal Length	15 cm (approx. 6 inches)

Optional Smart Lenses

Lens Type	IFOV	Field of View	Min Focal Length	IR-Fusion®
2x Telephoto	0.46 mRad	17°H x 12°V	45 cm (18 inches)	PIP and Full Screen
4x Telephoto	0.23 mRad	6°H x 4.5°V	1.5 m (60 inches)	Not Applicable
Wide-Angle	1.85 mRad	46°H x 34°V	15 cm (6 inches)	Full Screen Horizontal and Span

Data Storage & Image Capture

Multiple storage options: Removable 4 GB micro SD card, 4 GB built-in flash memory, USB flash drive, Fluke Cloud™
One-handed image capture, viewing, and saving
Image formats: Non-radioactive (.bmp, .jpeg) or full-radioactive (.is2)
Memory view: Thumbnail and full-screen
SmartView® Software for comprehensive analysis and reporting
Audio annotations: Up to 60 seconds per image
IR-PhotoNotes™ Image Annotation (5 images)
Text annotations
Video recording: Standards and Radiometric formats
Streaming video to PC, smartphone, or TV monitor
Remote control operation via SmartView® software or Fluke Connect® app
Auto-capture (temperature and interval)

Power & Battery

Battery	Two intelligent rechargeable lithium-ion battery packs
Battery Life	2-3 hours per battery
Charging Time	2.5 hours to fully charge
Charging System	Dual-slot battery charger or internal charging, optional 12V car charger
AC Operation	100-240 VAC, 50/60 Hz via included power supply

General Specifications

Frame Rate	60 Hz or 9 Hz models
Laser Pointer	Yes
LED Light (Flashlight)	Yes
Color Alarm	High, Low, and Isothermal Lines
Temperature Measurement	Center Point, Hot and Cold Spot Markers, 3 user-defined points
Infrared Spectrum Band	7.5 μm to 14 μm (long wave)
Operating Temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage Temperature	-20 °C to +50 °C (-4 °F to 122 °F)
Relative Humidity	10% to 95% non-condensing
Dimensions (H x W x L)	27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
Weight (including battery)	1.04 kg (2.3 lb)
Enclosure Protection Rating	IP54 (dust seal protection, all-around waterproof)
Warranty Period	Two-year standard warranty, extended available
Recommended Calibration Cycle	Two years
Supported Languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
