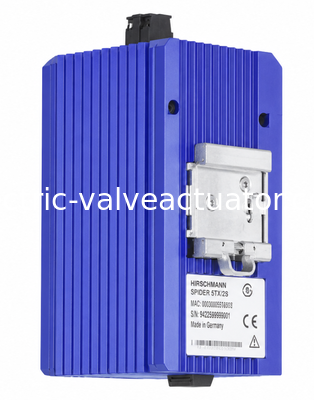

Hirschmann SPIDER-SL-20-06T1S29999SY9HHHH Industrial Ethernet Switch for Factory Automation Networks

Name: Hirschmann SPIDER-SL-20-06T1S29999SY9HHHH Industrial Ethernet Switch for Factory Automation Networks
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: RS20-0800S2S2SDAEHC
Price: 210.00 USD
Availability: InStock

Marka Adı:	Hirschmann
Model Numarası:	RS20-0800S2S2SDAEHC
Adedi:	1
fiyat:	Anlaşılabilir

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Almanya

Bükümlü çift kablo (TP):

0-100 metre

24 V DC'de akım tüketimi:

maksimum. 120mA

Çalışma voltajı:

12/24V DC (9,6-32V DC)

Enerji Tüketimi:

maksimum. 2,8 watt

BTU (IT)/h birimleri cinsinden güç çıkışı:

9.5

Güç/sinyal kontakları:

1 x geçmeli terminal bloğu, 3 pinli

Ambalaj bilgileri:

yeni orijinal kutu

Ürün Tanımı

Hirschmann SPIDER-SL-20-06T1S29999SY9HHHH Industrial Ethernet Switch

The Hirschmann SPIDER-SL-20-06T1S29999SY9HHHH is a purpose-engineered, unmanaged Industrial Ethernet switch from the trusted SPIDER III Standard Line portfolio. Designed to serve as the resilient communications backbone for factory automation networks, this switch delivers exceptional uptime, simplicity, and environmental robustness where these qualities are non-negotiable.

Key Features

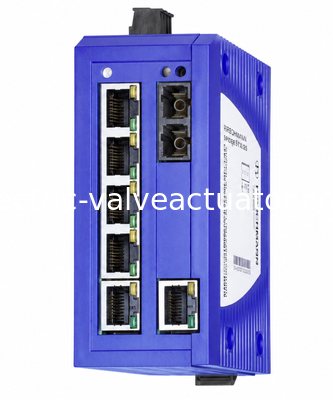

6× 10/100 BASE-TX RJ45 copper ports with auto-negotiation and Auto MDI/MDIX
1× 100 BASE-FX single-mode fiber port (SC interface, 9/125 µm)
Long-haul fiber uplinks capable of spanning distances up to 30 kilometers
Plug-and-play architecture requiring zero configuration
Compact DIN-rail mounting with space-saving design (45 × 110 × 88 mm)
Fanless IP30-rated plastic enclosure for harsh industrial environments
Wide operating temperature range: 0 °C to +60 °C
Versatile 9.6-32 V DC power input with spring-clamp terminal block

Technical Specifications

Port Configuration	6× 10/100 BASE-TX RJ45 ports, 1× 100 BASE-FX single-mode fiber port
Fiber Distance	Up to 30 kilometers
Enclosure Rating	IP30
Operating Temperature	0 °C to +60 °C
Power Input	9.6-32 V DC
Vibration Resistance	Up to 1 g (IEC 60068-2-6)
Shock Resistance	Up to 15 g (IEC 60068-2-27)
MTBF	Exceeding 1.5 million hours (Telcordia SR-332 Method 1)

Industrial Durability: Engineered for harsh environments with exceptional resistance to mechanical stress, vibration, and shock. Compliant with rigorous EMC immunity standards (EN 61000-4-2, 4, 5, and 6) for stable performance near high-frequency drives, welding equipment, and heavy machinery.

Application Benefits

This switch is ideally suited for:

Interconnecting distributed I/O cabinets and cross-bay production lines
Connecting remote process skids without signal degradation
Factory automation networks requiring noise-immune fiber uplinks
Mission-critical manufacturing processes in automotive, food & beverage, pharmaceutical, and intralogistics systems

The store-and-forward switching architecture guarantees data integrity by verifying packet validity before transmission, while front-panel LEDs provide instant visual diagnostics for rapid fault isolation.
