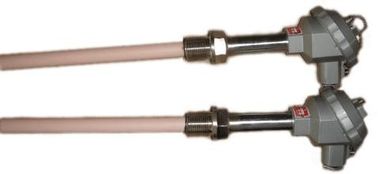

Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130

Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130

  • Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130
  • Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130
Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130
Ürün ayrıntıları:
Place of Origin: China
Marka adı: OEM
Model Number: WRR-130
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
İletişim
Detaylı ürün tanımı
Vurgulamak:

s type thermocouples

,

high temperature thermocouple



Industrial Assembly Type Thermocouple High Alumium Corundum WRR-130





assembly-type thermocouple



The industrial assembly-type thermocouple is used as a sensor of measuring temperature, always being used with display instruments, recording meter and electronic regulator. It can be directly measured the surface temperature from 0 oC to 1800 oC within liquid, vapor, gas medium and solid which from various production processes.

 Since 1987, according to the national regulations, our factory have being producing thermocouple made from Pt-Rh /30%, Pt-Rh /6%, Pt-Rh /10%,Ni-Pt, Ni-Si, Ni-Cr, Cu-Ni, Fe-Cu-Ni etc under the IEC international standard index numbers, and also comply with JB/T9238-1 999 standard.


Thermocouple type model graduation Temp range  oC
Specs
Response time T0.5S
Dia
mm
Protection casing matertial
Single PtRh30-PtRh6 WRR-120 B 0~1600 Φ16 corundum <150
WRR-121 Φ25 <360
Double PtRh30-PtRh6 WRR2-120 Φ16 <150
WRR2-121 Φ25 <360
Single PtRh10-Pt WRP-120 S 0~1300 Φ16 High alumium <150
WRP-121 Φ25 <360
Double PtRh10-Pt WRP2-120 Φ16 <150
WRP2-121 Φ25 <360
Single NiCr-NiSi WRN-122 K 0~1100 Φ16 High alumium <240
WRN-123 0~1200 Φ20
doubleNiCr-NiSi WRN2-123 0~1100
Single PtRh30-PtRh6 WRR-130 B 0~1600 Φ16 corundum <150
WRR-131 Φ25 <360
Double PtRh30-PtRh6 WRR2-130 Φ16 <150
WRR2-131 Φ25 <360
Single PtRh10-Pt WRP-130 S 0~1300 Φ16 High alumium <150
WRP-131 Φ25 <360
Double PtRh10-Pt WRP2-130 Φ16 <150
WRP2-131 Φ25 <360
Single NiCr-NiSi WRN-133 K 0~1200 Φ30 High alumium <240
double NiCr-NiSi WRN2-133 0~1100




Note:  1) Non-placement part of structural characteristics is carbon steel -20.
2) Diameter φ25mm to double porcelain bushing.
