| Place of Origin: | China |
| Marka adı: | OEM |
| Model Number: | WRR-433Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 15 days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets |
| Vurgulamak: | s type thermocouples,temperature measurement thermocouple |
||
|---|---|---|---|

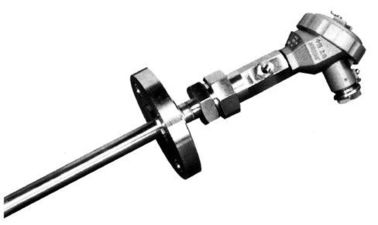

Waterproof Custom Blow Air Thermocouple Magnetic Level Gauges WRR-433Q
Blow air thermocouple
blow air thermocouple structure theory is that there is a certain gas path between the armored thermocouple and protection tube. Users need input inert gas with certain pressure to eliminate or reduce the gas penetration under the high- temperature, high- pressure conditions. If you add tantalum, it will increase the suction characteristics of blowing-type thermocouple and extending the life of armored thermocouple. It is a key temperature sensor for ammonia completed device.
|
W
Temperature Instrumentation
|
R
thermocouple
|
□
Material of thermocouple
|
□
structure
|
□
Junction Box Type
|
□
Protection tube diameter
|
□
Installation Type
|
| R)Platinum and rhodium 30- Platinum and rhodium 6 |
4)
fixed-flange
|
3)
water-proof
|
3) Ø20 |
Q)
blow-type
|
| type | model | graduation | Range(℃) | gas-filled pressure Mpa | specification | ||
|
total length
L(mm)
|
placed- depth
l(mm)
|
Diameter
d(mm)
|
|||||
| Platinum and rhodium 30- Platinum and rhodium 6 | WRR-433Q | B | 800-1100 | 0.1 |
650
850
900
|
500
700
750
|
ø20 |
